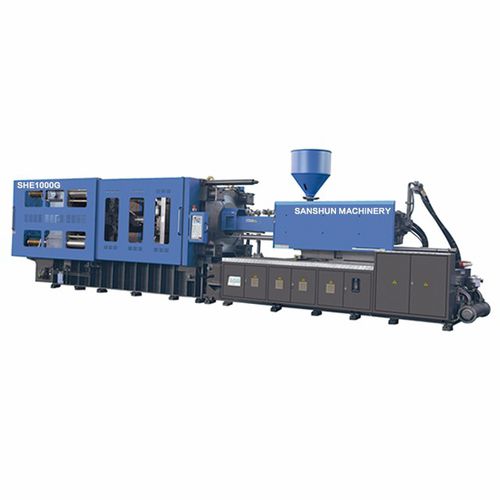

Horizontal injection molding machine SHE1000G

hydraulictoggle

SANSHUN SHE-G series energy saving injection molding machine will be your best choice as Servo motor with high efficiency and servo motor system can save energy by 40%-60%. A servo-driven hydraulic machine is a full-hydraulic IMM with a servo motor to drive the hydraulic pump. Servo motors are well known for delivering high accuracy and repeatability — critical factors in quality assurance. Servo-driven pump machines usually have a noise level that is far lower than a standard hydraulic machine. Modern Servo-driven pump machines should have a noise level around 68 dbA. Advantages Energy saving, environmental, low noise, quick response, high-efficiency, Shorter Cycle Time, Improve Production efficiency CLAMPING UNIT - 　 - 　 Toggle stroke - mm - 1100 Mould Thickness - mm - 500-1150 Space between tie-bars - mm - 1137X1088 Ejector stroke - mm - 300 Ejector tonnage - KN - 210 Ejector number - Piece - 21 Hole Diameter - mm - 250 OTHERS - 　 - 　 Heat power - KW - 68.7 Max. pump pressure - MPa - 16 Pump motor power - KW - 40+40+40 Valve Size - mm - cartridge valve Machine dimension - m - 13.5X2.5X2.95 Machine weight - t - 56 Oil tank capacity - L - 1500
