Stainless gasket

coatedstainless steel meshtadpole

Overview

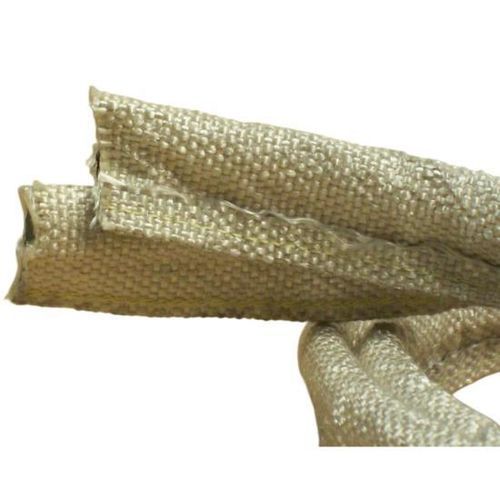

The vermiculite-coated fiberglass tadpole gasket tape with an Inconel or stainless steel mesh core is a high-temperature door seal designed for industrial furnaces, boilers, kilns and ovens. The vermiculite coating on the outer fiberglass layer increases heat and abrasion resistance, while the wire mesh core provides structural support and repeated compression strength for frequent door cycling.

Key Features

• Vermiculite-coated fiberglass outer layer for enhanced heat and abrasion resistance
• Inconel or stainless steel mesh core for high-temperature strength
• Designed for reliable sealing of furnace, kiln and oven doors
• Available in multiple bulb diameters and tail widths for retrofits
• Flexible profile for straightforward installation on flanges and door edges
• Custom lengths available to specification

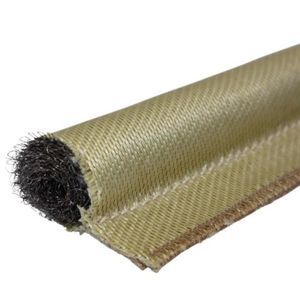

Product Structure
Outer Layer | Vermiculite-coated fiberglass | Heat and abrasion protection
Core Reinforcement | Inconel wire mesh or stainless steel mesh | Structural support and compression strength
Tail Section | Fiberglass tape | Attachment to door flange or mounting surface

Technical Specifications
Product Name | Vermiculite-coated fiberglass tadpole gasket tape
Outer Material | Vermiculite-coated fiberglass
Core Material | Inconel wire mesh / Stainless steel mesh
Continuous Temperature | 1000°C (1832°F)
Peak Temperature | 1100°C (2012°F)
Bulb Diameter | 10 mm – 50 mm (custom available)
Tail Width | 20 mm – 100 mm (custom available)
Length | Supplied to customer-specified lengths
Color | Gold / Brown

Typical Applications

• Industrial furnace door seals
• Boiler door gaskets
• Kiln and annealing oven seals
• Steel mill furnace doors
• Glass manufacturing equipment
• Power plant boiler doors

Installation

• Clean the installation surface and remove debris and old gasket material
• Position the tadpole gasket along the door flange ensuring correct orientation
• Secure the tail section using high-temperature adhesive, clips or mechanical fasteners
• Check for even compression and continuous contact when the door is closed

RFQ – Frequently Asked Questions

• What is the purpose of a tadpole gasket? Tadpole gaskets provide a compressible seal with a flat tail for easy attachment to door flanges and a bulb that compresses to form the seal.
• Why use vermiculite-coated fiberglass? The vermiculite coating improves thermal stability and abrasion resistance compared with uncoated fiberglass, extending service life in high-temperature environments.
• What is the advantage of an Inconel core? Inconel wire mesh offers superior high-temperature mechanical strength and corrosion resistance compared with standard stainless steels.
• Can the gasket be customized? Yes. Bulb diameter, tail width and overall length can be produced to customer specifications.
