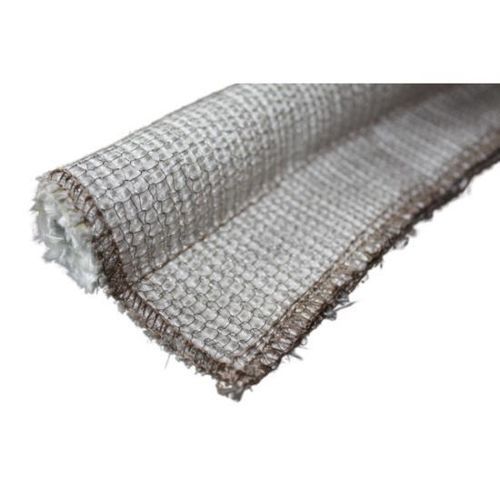

Metal sealing strip

fabricmetal wireceramic

Product Overview
The tadpole (bulb-and-tail) gasket combines an Inconel wire stocking, a ceramic fabric cover and a ceramic core to deliver a compressible sealing bulb with enhanced thermal and mechanical resistance. It is designed for high-temperature industrial enclosures such as furnace doors, kilns and heat‑treatment equipment, where abrasion protection and thermal stability are required.

Multi-Layer Construction

• Outer stocking: Inconel wire — mechanical reinforcement and surface abrasion protection
• Fabric cover: Ceramic fabric — high-temperature textile barrier around the core
• Sealing core: Ceramic core — compressible body forming the sealing bulb
• Mounting tail: application-specific textile construction — fastening/attachment area
• Sewing: high-temperature sewing thread — secures the assembly during handling and service

How It Seals & Installation
The bulb is positioned along the sealing perimeter and the tail is fixed to the door, frame or retaining structure. Closing the mating panel compresses the bulb to form the seal; the rounded bulb profile distributes compression across the contact surface. Typical installation steps:

• Position the bulb along the required sealing path.
• Align the mounting tail with the attachment surface.
• Secure the tail using the specified fastener or retention method.
• Close the door or panel to establish bulb compression.
• Check that the gasket is correctly compressed and not mechanically restricted.

Performance Advantages

• Reinforced construction for demanding high-temperature environments
• Inconel stocking provides mechanical and abrasion protection
• Ceramic fabric offers a heat-resistant textile barrier
• Ceramic core forms a flexible, compressible sealing bulb
• Suitable for repeated thermal cycling when specified correctly
• Adaptable to curved or application-specific sealing paths
• Useful where both thermal resistance and surface protection are required
• Customizable bulb and tail dimensions for OEM and replacement use

Applications

• Industrial furnace doors
• Heat‑treatment furnace enclosures
• Industrial oven doors and access panels
• Kiln doors and inspection openings
• Thermal processing equipment
• Refractory‑lined equipment
• High‑temperature chambers and combustion enclosures
• Drying and curing ovens
• Glass manufacturing equipment
• Paper and pulp processing equipment
• Custom OEM thermal sealing systems

Customization Options
Bulb diameter, tail width, overall length, Inconel stocking wire and mesh configuration, ceramic fabric type, ceramic core construction, profile geometry and attachment method can be adapted to match sealing gap, required compression, mechanical exposure and installation method.

Technical Data (summary)

• Product type: Tadpole (bulb-and-tail) gasket with Inconel stocking and ceramic core
• Design: Bulb-and-tail profile
• Outer reinforcement: Inconel wire stocking
• Fabric cover: Ceramic fabric
• Core: Ceramic core
• Temperature capability: Dependent on selected material grades, construction and operating conditions
• Profile: Custom bulb and tail configurations
• Manufacturing: Custom produced to application requirements
• Typical use: High-temperature sealing for doors, panels and access openings

Ordering & Logistics
Minimum order quantity: 1
Payment terms: EXW, FOB, CIF, DDP, FCA (examples)
Shipping ports: Shanghai, Ningbo
