Ceramic sealing strip

ceramic fibertadpolefor furnaces and ovens

Overview

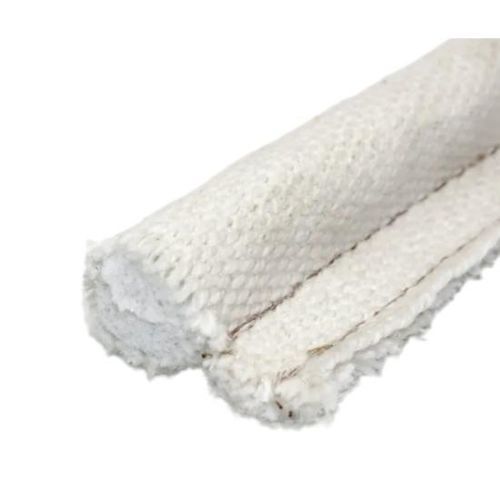

The BSTFLEX Ceramic Fabric Cover Ceramic Core Tadpole Gasket is a bulb-and-tail sealing profile engineered for high-temperature doors, inspection ports and access panels on furnaces, kilns, ovens and thermal processing equipment. The ceramic fabric outer cover resists prolonged thermal exposure while the internal ceramic core preserves the bulb profile and compression behavior. The integrated mounting tail enables secure attachment to doors, frames or retaining channels.

Product Construction
Component: Outer Cover — Material: Ceramic fabric — Function: High-temperature surface protection and external sealing surface
Component: Internal Core — Material: Ceramic core — Function: Maintains rounded bulb shape, resilience and compression recovery
Component: Tail — Material: Ceramic textile construction — Function: Mounting/attachment to panels or channels
Component: Sewing — Material: High-temperature thread selected per application — Function: Secures cover to core during service

How it Works
The tadpole design combines a compressible bulb that seals against the mating face and a flat tail for mechanical attachment. On door closure the bulb compresses to close gaps and limit leakage of heat, gases, dust and process media. The profile tolerates component movement and surface irregularities, making it suitable for frequently cycled thermal doors and access panels.

Ceramic Fabric Cover for High Temperature Sealing
Ceramic fabric covers are specified where prolonged radiant or convective heat exposure would degrade organic coverings. The textile construction preserves flexibility for curved frames and irregular perimeters while delivering thermal stability at elevated temperatures. Finished gaskets are available in continuous lengths, formed sections or custom assemblies to match equipment geometry.

Ceramic Core for Thermal Equipment Doors
The ceramic core supplies the internal volume and shape for reliable compression sealing while remaining non-metallic and lightweight. Core diameter, density and construction are selected according to required compression, available installation space and operating conditions.

Key Advantages

• Designed for high-temperature sealing in furnaces, kilns and ovens
• Ceramic fabric outer cover for prolonged thermal exposure
• Ceramic core provides lightweight, non-metallic sealing structure
• Bulb profile supports repeatable compression sealing around doors and panels
• Flexible construction conforms to curved or irregular surfaces
• Suitable for repeated opening and closing cycles
• Customizable diameters, lengths and profiles for OEM or replacement needs
• Manufactured to application-specific material and attachment requirements

Custom Ceramic Fabric Tadpole Gasket Options
BSTFLEX produces custom tadpole gaskets: bulb diameter, tail width, gasket length, profile geometry, core construction, cover specification and attachment method can be specified to meet OEM or retrofit requirements.

Customization Considerations
Bulb Diameter: Selected for sealing gap and compression requirement
Tail Width: Matched to mounting surface, retaining channel or fastening method
Gasket Length: Supplied in straights or matched to equipment perimeter
Profile: Single bulb, custom bulb dimensions, formed corners or application-specific shapes
Core Construction: Specified for compression, flexibility and operating temperature
Cover Construction: Ceramic fabric grade chosen for thermal and mechanical exposure
Attachment: Tail configuration adapted to mechanical fastening or channel retention

Typical Applications

• Industrial furnace doors
• Heat treatment furnace enclosures
• Industrial oven doors
• Kiln doors and access panels
• Thermal processing equipment
• High-temperature inspection doors
• Combustion equipment access panels
• Refractory-lined equipment
• Drying and curing systems

Technical Information
Product Type: Ceramic Fabric Cover Ceramic Core Tadpole Gasket
Gasket Profile: Bulb-and-tail sealing profile
Cover Material: Ceramic fabric
Core Material: Ceramic core
Temperature Capability: Dependent on ceramic fabric grade, core construction, sewing thread and exposure; evaluate for time, atmosphere and compression conditions
Manufacturing: Custom manufactured to application requirements
Shape: Round bulb with integrated mounting tail or customized profile
Application: High-temperature sealing and protection of thermal equipment

Order & Logistics
Minimum Order Quantity (MOQ): 1
Payment Terms: EXW, FOB, CIF, DDP, FCA, etc.
Shipping Port: Shanghai, Ningbo
