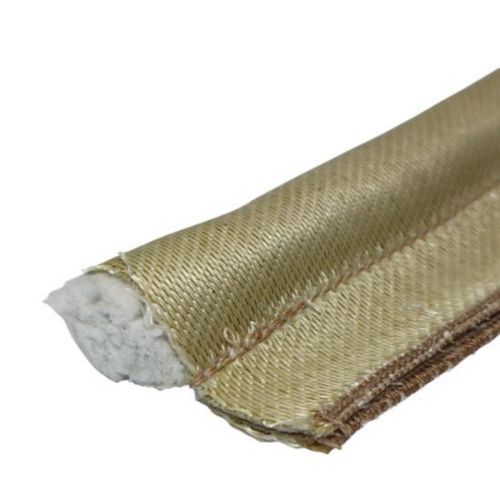

Ceramic sealing strip

tadpolefor high-temperature applicationsfor furnaces and ovens

Overview
BSTFLEX silica cloth covered ceramic core tadpole gasket is a flexible high temperature sealing solution designed for furnace doors, industrial ovens, kilns, heat treatment equipment and other thermal processing systems. Its bulb-and-tail profile combines a compressible sealing bulb with an extended mounting tail, allowing the gasket to provide a continuous seal around doors, access panels and equipment openings.

Construction
The sealing bulb is formed around a ceramic core and enclosed with high temperature silica cloth. The ceramic core provides heat-resistant structural support within the bulb, while the silica cloth cover forms the external thermal barrier. The extended tail provides a practical mounting section for mechanical attachment to doors, frames and access panels.

Component / Material / Purpose
Component | Material | Purpose
Outer Cover | Silica Cloth | Provides the high temperature textile barrier and protects the internal structure
Core | Ceramic | Supports the bulb profile and provides heat-resistant internal structure
Sealing Bulb | Silica Cloth Covered Ceramic Core | Forms the compressible sealing section
Mounting Tail | Silica Cloth | Provides an attachment area for mechanical installation
Sewing | High Temperature Thread | Secures the textile cover around the gasket construction

Customization
Bulb Diameter | Custom
Tail Width | Custom
Tail Thickness | Custom
Gasket Length | Custom
Core Material | Ceramic
Cover Material | Silica Cloth
Profile | Single bulb, double bulb and custom profiles
Shape | Straight, ring, frame or custom formed configuration
Mounting Tail | Custom width and thickness

Technical Data
Property | Specification
Product Type | Ceramic Core Tadpole Gasket
Alternative Names | Tadpole Seal, Tadpole Tape, Tadpole Gasket Tape
Outer Cover | Silica Cloth
Core | Ceramic
Profile | Bulb and Tail
Bulb Diameter | Custom
Tail Width | Custom
Tail Thickness | Custom
Length | Custom
Shape | Straight, ring, frame or custom configuration
Installation | Mechanical fastening
Temperature Rating | Dependent on material grade, construction and application conditions
Customization | Available

How it works
A tadpole gasket seals a joint through compression of its rounded bulb. The mounting tail is positioned against the equipment frame and secured with a suitable mechanical fastening method. When the door or panel closes, the bulb is compressed against the mating surface, filling the gap to create a continuous thermal sealing barrier. The ceramic core supports the bulb, while the silica cloth cover protects the gasket from direct exposure to heat.

Advantages

• High temperature textile construction: silica cloth cover for demanding thermal environments
• Ceramic core support: non-metallic internal structure for high temperature resistance
• Flexible bulb-and-tail profile: compressible bulb with extended tail for secure mounting
• Custom profile options: bulb diameter, tail dimensions, length and shape can be customized
• Suitable for thermal cycling when properly selected and installed
• Non-metallic core option where a non-metallic internal structure is preferred

Applications

• Industrial furnace doors
• Industrial oven doors
• Kiln doors
• Heat treatment equipment
• Thermal processing chambers
• Batch ovens
• Conveyor ovens
• Drying ovens
• Powder coating ovens
• High temperature access panels and inspection doors
• Heating chambers
• Glass processing equipment
• High temperature enclosures

Ordering & Logistics
order (moq): 1
Payment: EXW, FOB, CIF, DDP, FCA, etc
shipping port: Shanghai, Ningbo

Technical characteristics / specifications

• Product type: Ceramic Core Tadpole Gasket
• Cover material: Silica Cloth (high temperature textile barrier)
• Core material: Ceramic (heat-resistant internal support)
• Sealing profile: Bulb and tail; bulb diameter and tail dimensions are customizable
• Installation: Mechanical fastening to door/frame/panel
• Temperature rating: Dependent on silica fabric grade, core construction and application; to be selected per application
• Custom manufacturing: Available from drawings, samples or dimensional specifications
• Typical applications: furnace/oven/kiln doors, heat treatment and thermal processing equipment
• Minimum order quantity: 1
• Payment terms and shipping ports: EXW/FOB/CIF/DDP/FCA etc; Shanghai or Ningbo
