Product Overview
BSTFLEX high-temperature tadpole gasket is a bulb-and-tail sealing profile designed for demanding thermal enclosures. It combines a silica cloth outer cover with an internal Inconel core to provide high-temperature resistance and dimensional support for the compressible sealing bulb.

Typical Uses
Recommended for furnace and industrial oven doors, kilns, heat-treating equipment, thermal processing chambers, access panels and other high-temperature enclosures. Available for OEM and industrial replacement applications and customizable to fit installation geometry.

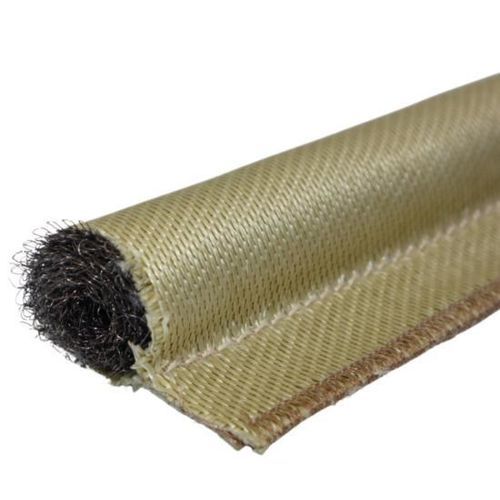

Silica Cloth Tadpole Gasket Construction
The gasket uses a rounded bulb for compression sealing and an extended tail for mechanical attachment. The Inconel core supports the bulb profile while the silica cloth cover provides a high-temperature textile barrier suitable for radiant heat and hot surfaces.

Component / Material / Function
Outer Cover — Silica Cloth — High-temperature protective textile
Core — Inconel — Internal reinforcement for profile stability
Bulb — Silica-cloth-covered core — Primary compressible sealing section
Tail — Silica Cloth — Flexible mounting section for fasteners
Sewing Thread — High-temperature thread — Secures cover and assembly

How Does a Tadpole Gasket Work?
The rounded bulb compresses against the mating surface to form a continuous seal while the tail is mechanically fastened to the equipment frame. The design accommodates minor dimensional variations and thermal movement during heating and cooling cycles.

Functional Sections

• Bulb: Rounded section providing the primary sealing surface.
• Tail: Flat extension for mechanical attachment (clips, screws, retainers).
• Core: Internal reinforcement that supports and stabilizes the bulb.
• Cover: High-temperature textile layer surrounding the core.

Tadpole Gasket vs Tadpole Seal vs Tadpole Tape
These terms describe similar bulb-and-tail sealing constructions. 'Tadpole gasket' is the common product term; 'tadpole seal' and 'tadpole tape' are industry synonyms or variations depending on application and mounting method.

High Temperature Performance
Silica cloth provides resistance to elevated temperatures and radiant heat; the Inconel core helps maintain gasket geometry and repeatable compression under thermal cycling. Actual temperature capability depends on fabric grade, core design, thread selection and exposure conditions.

Key Advantages of the Tadpole Gasket

• Silica cloth outer cover for high-temperature exposure
• Inconel core reinforcement for dimensional stability
• Compressible bulb profile to accommodate gap variation
• Practical tail for mechanical mounting
• Custom dimensions and profiles to match equipment
• Suitable for straight lengths, rings, frames and formed assemblies

Custom Tadpole Gasket Manufacturing
Custom production is available to match installation space, compression distance, mounting method and operating temperature. Manufacturers can produce to drawings, dimensions or samples for OEM, maintenance and industrial users.

Customization Options
Bulb Diameter — Custom
Tail Width — Custom
Tail Thickness — Custom
Gasket Length — Custom straight length or formed configuration
Core Material — Inconel or other specified constructions
Cover Material — Silica cloth and other high-temperature textiles
Profile — Single bulb, double bulb and other custom profiles
Shape — Straight, ring, frame or custom formed assembly

Technical Data

• Product Type: Tadpole Gasket / Tadpole Seal
• Brand: BSTFLEX
• Outer Cover Material: Silica Cloth
• Core Material: Inconel
• Construction: Bulb-and-tail sealing profile
• Bulb Diameter: Custom (per application)
• Tail Width: Custom
• Tail Thickness: Custom
• Overall Length / Shape: Custom (straight, ring, frame or formed)
• Installation: Mechanical fastening (clips, screws, retainers, bolts)
• Temperature Rating: Dependent on material grade and construction
• Customization: Available — manufactured to drawings, samples or specified dimensions
• Order (MOQ): 1
• Payment Terms: EXW, FOB, CIF, DDP, FCA, etc.
• Shipping Port Options: Shanghai, Ningbo

Applications

• Industrial oven doors
• Furnace doors
• Kiln openings
• Heat-treating equipment
• Batch and conveyor ovens
• Drying and powder-coating ovens
• Thermal processing chambers
• Boiler and inspection panels
• Glass processing equipment
• High-temperature enclosures

Tadpole Gasket for Furnace and Oven Doors
When used on doors and access panels, select a bulb and tail geometry that matches the available gap and required compression. The silica cloth and Inconel combination is suited to applications where thermal resistance and mechanical stability are required.

Why Choose This Construction

• Custom bulb and tail dimensions
• Silica cloth high-temperature cover
• Inconel core options for reinforcement
• Custom lengths and formed shapes for OEM replacements
• Production to drawings or samples
• Material and construction selection support

Ordering Guidance
Provide gasket profile, bulb diameter, tail dimensions, required length, expected operating temperature and installation method for accurate quotation. Supplying a drawing or sample speeds customization and ensures fit and performance.
