wastewater pump / electric / semi-submersible / screw
DV series

Add to MyDirectIndustry favorites
Compare this product
wastewater pump / electric / semi-submersible / screw wastewater pump / electric / semi-submersible / screw - DV series
{{requestButtons}}

Characteristics

  • Media:

    for wastewater

  • Operation:

    electric

  • Priming:

    semi-submersible

  • Technology:

    screw

  • Domain:

    industrial

  • Other characteristics:

    transfer, suction, for corrosive fluids, for high-viscosity fluids, vertical

  • Flow:

    400 m³/h (14,125.8667 ft³/h)

  • Pressure:

    48 bar (696.181 psi)

Description

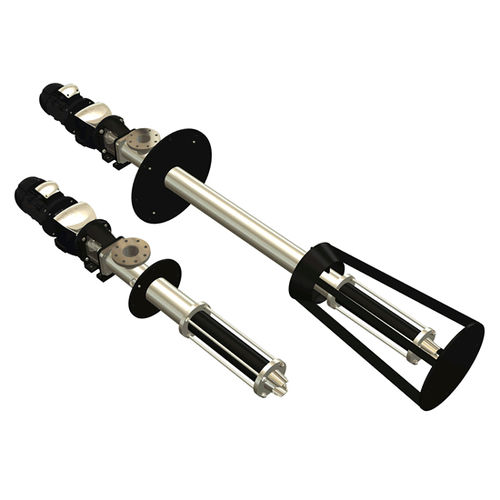

DV vertical pumps are designed to accomplish easy fluid suction from wells, cisterns, barrels and tanks. Their reduced dimensions and partial immersion design reduce the negative head. Different cone plates for fixing are available on request.
These pumps can transfer corrosive products, sludge and very viscous fluids. The maximum capacity is 400 cubic meters per hour, and they can handle a maximum pressure of 48 bar. The maximum temperature is 180 degrees Celsius. The NPSHr is 3 m and it is available in sizes from 025 to 300.
