PA6 cable gland ExO series

IP68explosion-prooffor hazardous areas

Product overview

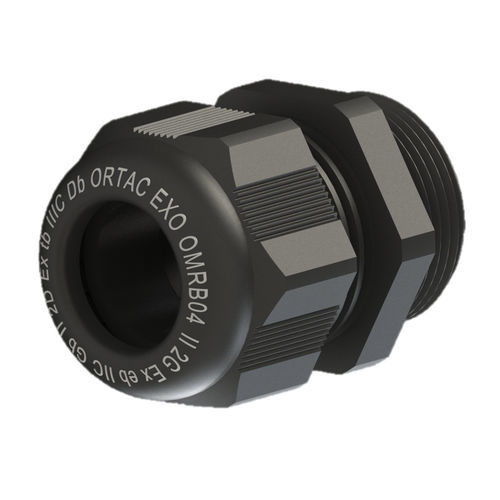

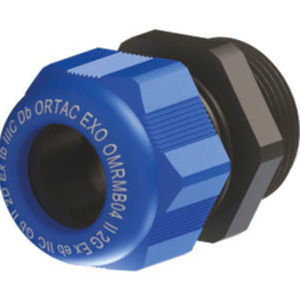

Ex-e Black EX - PG and Long Thread cable glands from ExO Series. Polyamide (PA6) Ex-proof glands in black (RAL 9005) designed for unarmoured cables and certified for use in hazardous areas (zones with explosive atmospheres).

Details (table)
Type : ExO Series (Polyamide Ex-proof gland)
Protection Code : II 2G Ex eb IIC Gb II 2D Ex tb IIIC Db
Certificate : IEP 20 ATEX 0750 X, ATEX, ROHS, CE, PT, TUV
Gland Body : Polyamide PA6
Connection Thread : PG (DIN 40430)
Colour : Black (RAL 9005)
Standard : EN 60079-0, 60079-7, 60079-31
Protection Class : IP68 5 Bar
Temperature Range : -30 °C +100 °C
Application Area : ZONE1, ZONE2, ZONE21, ZONE22, Gas Group IIA, IIB, IIC
Cable Type : Unarmoured

PG Sizes (table)
Header: AG | Black Code | H (mm) | GL (mm) | Wrench | Clamping Range mm
PG-7 | ExOXXORB 01 | 24 | 8 | 15 | 3 - 6,5
PG-9 | ExOXXORB 02 | 28 | 8 | 19 | 4 - 8
PG-11 | ExOXXORB 03 | 29 | 8 | 22 | 5 - 10
PG-13.5 | ExOXXORB 04RS | 29 | 9 | 24 | 4 - 10
PG-13.5 | ExOXXORB 04 | 29 | 9 | 24 | 6 - 12
PG-16 | ExOXXORB 05 | 33 | 9 | 27 | 10 - 14
PG-21 | ExOXXORB 06 | 38 | 11 | 33 | 13 - 18
PG-21 | ExOXXORB 06/9-17 | 38 | 11 | 33 | 9 - 17
PG-29 | ExOXXORB 07 | 41 | 11 | 42 | 18 - 25
PG-36 | ExOXXORB 08 | 51 | 11 | 53 | 22 - 32
PG-42 | ExOXXORB 09 | 53 | 11 | 60 | 30 - 38
PG-48 | ExOXXORB 10 | 55 | 14 | 65 | 34 - 44

Long Thread (table)
Header: AG | Black Code | H (mm) | GL (mm) | Wrench | Clamping Range mm
PG-7 | ExOXXORBL 01 | 24 | 15 | 15 | 3 - 6,5
PG-9 | ExOXXORBL 02 | 28 | 15 | 19 | 4 - 8
PG-11 | ExOXXORBL 03A | 29 | 10 | 22 | 5 - 10
PG-11 | ExOXXORBL 03 | 29 | 15 | 22 | 5 - 10
PG-13.5 | ExOXXORBL 04RS | 29 | 15 | 24 | 4 - 10
PG-13.5 | ExOXXORBL 04 | 29 | 15 | 24 | 6 - 12
PG-16 | ExOXXORBL 05 | 33 | 15 | 27 | 10 - 14
PG-21 | ExOXXORBL 06 | 38 | 15 | 33 | 13 - 18
PG-21 | ExOXXORBL 06/9-17 | 38 | 15 | 33 | 9 - 17

Technical specifications

• Type: ExO Series, Polyamide (PA6) Ex-proof gland
• Protection Code: II 2G Ex eb IIC Gb II 2D Ex tb IIIC Db
• Certificates: IEP 20 ATEX 0750 X, ATEX, ROHS, CE, PT, TUV
• Connection Thread: PG (DIN 40430)
• Colour: Black (RAL 9005)
• Standards: EN 60079-0, EN 60079-7, EN 60079-31
• Protection Class: IP68 up to 5 Bar
• Temperature Range: -30 °C to +100 °C
• Application Areas: ZONE1, ZONE2, ZONE21, ZONE22; Gas Groups IIA, IIB, IIC
• Cable Type: Unarmoured cables
• Available Variants: PG and Long Thread versions across PG-7 to PG-48 sizes with respective clamping ranges
