Polyamide cable gland ExO series

PA6waterproofIP68

Overview

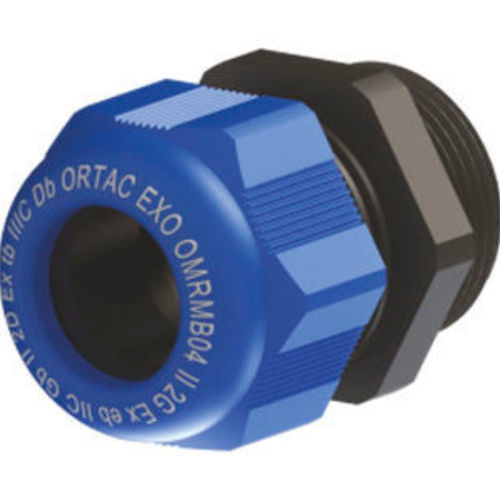

ExO Series polyamide (PA6) ex-proof cable glands designed for electrical installations in hazardous areas. Certified for gas and dust atmospheres, available in black (RAL 9005) and blue (RAL 5012), with metric and long thread versions and multiple clamping ranges.

Available sizes (Metric)
Header: Thread | Code | H | GL | Wrench | Clamping Range mm

• M 12 x 1,5 | ExOXXOMRMB 01 | 24 | 8 | 15 | 3 - 6,5
• M 16 x 1,5 | ExOXXOMRMB 02 | 28 | 8 | 19 | 4 - 8
• M 16 x 1,5 | ExOXXOMRMB 03 | 29 | 10 | 22 | 5 - 10
• M 20 x 1,5 | ExOXXOMRMB 04RS | 29 | 10 | 24 | 4 - 10
• M 20 x 1,5 | ExOXXOMRMB 04 | 29 | 10 | 24 | 6 - 12
• M 20 x 1,5 | ExOXXOMRMB 05 | 33 | 10 | 27 | 10 - 14
• M 25 x 1,5 | ExOXXOMRMB ES4 | 32 | 10 | 29 | 4 - 10
• M 25 x 1,5 | ExOXXOMRMB ES6 | 32 | 10 | 29 | 6 - 12
• M 25 x 1,5 | ExOXXOMRMB 06/9-17 | 38 | 10 | 33 | 9 - 17
• M 25 x 1,5 | ExOXXOMRMB E6-9 | 35 | 10 | 29 | 9 - 14
• M 25 x 1,5 | ExOXXOMRMB E6 | 35 | 10 | 29 | 11 - 17
• M 25 x 1,5 | ExOXXOMRMB 06 | 38 | 10 | 33 | 13 - 18
• M 32 x 1,5 | ExOXXOMRMB E7 | 40 | 10 | 36 | 15 - 21
• M 32 x 1,5 | ExOXXOMRMB 07 | 41 | 10 | 42 | 18 - 25
• M 40 x 1,5 | ExOXXOMRMB E8 | 43 | 10 | 46 | 19 - 28
• M 40 x 1,5 | ExOXXOMRMB 08 | 51 | 10 | 53 | 22 - 32
• M 50 x 1,5 | ExOXXOMRMB 09 | 53 | 18 | 60 | 30 - 38
• M 63 x 1,5 | ExOXXOMRMB 10 | 55 | 18 | 70 | 34 - 44
• G3/4'' | ExOXXOGRMB 06 | 38 | 10 | 33 | 13 - 18

Available sizes (Long Thread)
Header: Thread | Code | H | GL | Wrench | Clamping Range mm

• M 12 x 1,5 | ExOXXOMRMB 01L | 24 | 15 | 15 | 3 - 6,5
• M 16 x 1,5 | ExOXXOMRMB 11S | 28 | 15 | 19 | 4 - 8
• M 16 x 1,5 | ExOXXOMRMB 11 | 29 | 15 | 22 | 5 - 10
• M 20 x 1,5 | ExOXXOMRMB 12RS | 29 | 15 | 24 | 4 - 10
• M 20 x 1,5 | ExOXXOMRMB 12 | 29 | 15 | 24 | 6 - 12
• M 20 x 1,5 | ExOXXOMRMB 13 | 33 | 15 | 27 | 10 - 14
• M 25 x 1,5 | ExOXXOMRMB ES14 | 32 | 15 | 29 | 4 - 10
• M 25 x 1,5 | ExOXXOMRMB ES16 | 32 | 15 | 29 | 6 - 12
• M 25 x 1,5 | ExOXXOMRMB 14/9-17 | 38 | 15 | 33 | 9 - 17
• M 25 x 1,5 | ExOXXOMRMB E14-9 | 35 | 15 | 29 | 9 - 14
• M 25 x 1,5 | ExOXXOMRMB E14 | 35 | 15 | 29 | 11 - 17
• M 25 x 1,5 | ExOXXOMRMB 14 | 38 | 15 | 33 | 13 - 18
• M 32 x 1,5 | ExOXXOMRMB E15 | 40 | 15 | 36 | 15 - 21
• M 32 x 1,5 | ExOXXOMRMB 15 | 41 | 18 | 42 | 18 - 25
• M 40 x 1,5 | ExOXXOMRMB E16 | 43 | 15 | 46 | 19 - 28
• M 40 x 1,5 | ExOXXOMRMB 16 | 51 | 18 | 53 | 22 - 32

Technical specifications

• Type: ExO Series (Polyamide Ex-proof gland)
• Protection Code: II 2G Ex eb IIC Gb II 2D Ex tb IIIC Db
• Certificates: IEP 20 ATEX 0750 X, ROHS, CE, PT, TUV
• Material (Gland Body): Polyamide PA6
• Connection Thread Standard: Metric (EN 60423)
• Colors: Black (RAL 9005) and Blue (RAL 5012)
• Standards: EN 60079-0, EN 60079-7, EN 60079-31
• Protection Class: IP68 (5 Bar)
• Operating Temperature Range: -30 °C to +100 °C
• Application Zones: ZONE1, ZONE2, ZONE21, ZONE22; Gas Groups IIA, IIB, IIC
