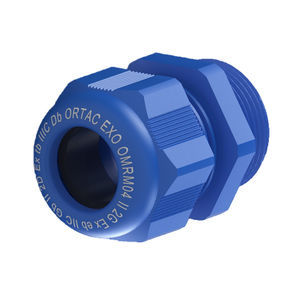

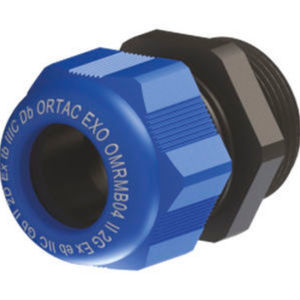

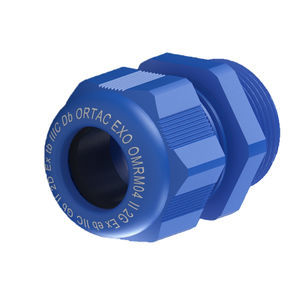

Polyamide cable gland ExO series

PAPA6IP68

Product Overview
Type: ExO Series (polyamide Ex-proof cable gland)
Protection code: II 2G Ex eb IIC Gb II 2D Ex tb IIIC Db
Certificates: IEP 20 ATEX 0750 X, RoHS, CE, PT, TUV
Gland body: Polyamide PA6
Connection thread: PG (DIN 40430)
Color: Black (RAL 9005) - Blue (RAL 5012)
Standards: EN 60079-0, EN 60079-7, EN 60079-31
Ingress protection: IP68 up to 5 Bar
Operating temperature: -30 °C to +100 °C
Application zones: ZONE1, ZONE2, ZONE21, ZONE22 (Gas groups IIA, IIB, IIC)
Cable type: Unarmoured

Black - Blue Code — PG Ex Cable Glands
Thread | RAL 9005 - RAL 5012

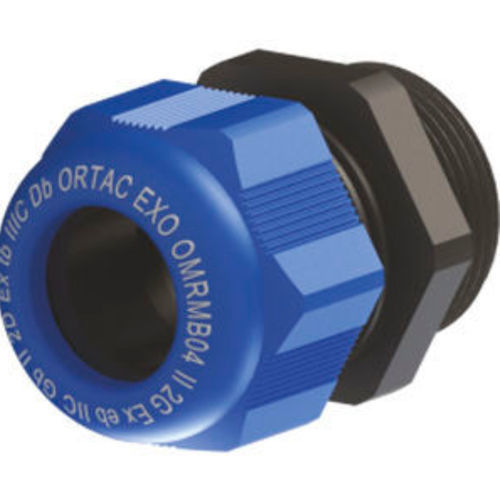

PG-7 — Code: ExOXXORMB 01 | H: 24 | GL: 8 | Wrench: 15 | Clamping range: 3 - 6.5 mm
PG-9 — Code: ExOXXORMB 02 | H: 28 | GL: 8 | Wrench: 19 | Clamping range: 4 - 8 mm
PG-11 — Code: ExOXXORMB 03 | H: 29 | GL: 8 | Wrench: 22 | Clamping range: 5 - 10 mm
PG-13.5 — Code: ExOXXORMB 04RS | H: 29 | GL: 9 | Wrench: 24 | Clamping range: 4 - 10 mm
PG-13.5 — Code: ExOXXORMB 04 | H: 29 | GL: 9 | Wrench: 24 | Clamping range: 6 - 12 mm
PG-16 — Code: ExOXXORMB 05 | H: 33 | GL: 9 | Wrench: 27 | Clamping range: 10 - 14 mm
PG-21 — Code: ExOXXORMB 06 | H: 38 | GL: 11 | Wrench: 33 | Clamping range: 13 - 18 mm
PG-21 — Code: ExOXXORBMB 06/9-17 | H: 38 | GL: 11 | Wrench: 33 | Clamping range: 9 - 17 mm
PG-29 — Code: ExOXXORMB 07 | H: 41 | GL: 11 | Wrench: 42 | Clamping range: 18 - 25 mm
PG-36 — Code: ExOXXORMB 08 | H: 51 | GL: 11 | Wrench: 53 | Clamping range: 22 - 32 mm
PG-42 — Code: ExOXXORMB 09 | H: 53 | GL: 11 | Wrench: 60 | Clamping range: 30 - 38 mm
PG-48 — Code: ExOXXORMB 10 | H: 55 | GL: 14 | Wrench: 65 | Clamping range: 34 - 44 mm

Long Thread
Thread | RAL 9005 - RAL 5012
PG-7 — Code: ExOXXORMBL 01 | H: 24 | GL: 15 | Wrench: 15 | Range: 3 - 6.5 mm
PG-9 — Code: ExOXXORMBL 02 | H: 28 | GL: 15 | Wrench: 19 | Range: 4 - 8 mm
PG-11 — Code: ExOXXORMBL 03A | H: 29 | GL: 10 | Wrench: 22 | Range: 5 - 10 mm
PG-11 — Code: ExOXXORMBL 03 | H: 29 | GL: 15 | Wrench: 22 | Range: 5 - 10 mm
PG-13.5 — Code: ExOXXORMBL 04RS | H: 29 | GL: 15 | Wrench: 24 | Range: 4 - 10 mm
PG-13.5 — Code: ExOXXORMBL 04 | H: 29 | GL: 15 | Wrench: 24 | Range: 6 - 12 mm
PG-16 — Code: ExOXXORMBL 05 | H: 33 | GL: 15 | Wrench: 27 | Range: 10 - 14 mm
PG-21 — Code: ExOXXORMBL 06 | H: 38 | GL: 15 | Wrench: 33 | Range: 13 - 18 mm
PG-21 — Code: ExOXXORMBL 06/9-17 | H: 38 | GL: 15 | Wrench: 33 | Range: 9 - 17 mm

Technical specifications

• Series: ExO Series (polyamide, Ex-proof)
• Material: Polyamide PA6
• Thread standard: PG (DIN 40430)
• Protection: II 2G Ex eb IIC Gb II 2D Ex tb IIIC Db
• Standards: EN 60079-0, EN 60079-7, EN 60079-31
• Certificates: IEP 20 ATEX 0750 X, RoHS, CE, PT, TUV
• Ingress protection: IP68 up to 5 Bar
• Operating temperature: -30 °C to +100 °C
• Colors: Black (RAL 9005) and Blue (RAL 5012)
• Intended zones: ZONE1, ZONE2, ZONE21, ZONE22 (Gas groups IIA, IIB, IIC)
• Cable type: Unarmoured
