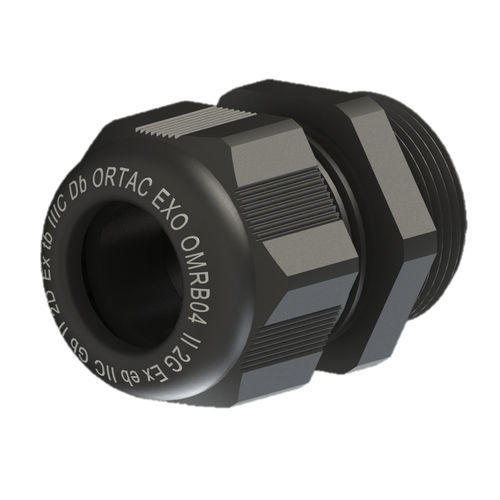

Polyamide cable gland ExO series

PA6IP68explosion-proof

Product overview
Type: ExO Series (Polyamide Ex-proof cable gland)
Protection Code: II 2G Ex eb IIC Gb II 2D Ex tb IIIC Db
Certificate: IEP 20 ATEX 0750 X, ROHS, CE, PT, TUV
Gland body: Polyamide PA6
Connection thread: Metric (EN 60423) — available in standard and long thread variants
Colour: Black (RAL 9005)
Protection Class: IP68 (5 Bar)
Temperature Range: -30 °C to +100 °C
Application Area: ZONE1, ZONE2, ZONE21, ZONE22; Gas Groups IIA, IIB, IIC
Cable Type: Unarmoured

Metric - Size table (selection)

• M 12 x 1,5 | Black Code: ExOXXOMRB 01 | H: 24 | GL: 8 | Wrench: 15 | Clamping Range mm: 3 - 6,5
• M 16 x 1,5 | Black Code: ExOXXOMRB 02 | H: 28 | GL: 8 | Wrench: 19 | Clamping Range mm: 4 - 8
• M 16 x 1,5 | Black Code: ExOXXOMRB 03 | H: 29 | GL: 10 | Wrench: 22 | Clamping Range mm: 5 - 10
• M 20 x 1,5 | Black Code: ExOXXOMRB 04RS | H: 29 | GL: 10 | Wrench: 24 | Clamping Range mm: 4 - 10
• M 20 x 1,5 | Black Code: ExOXXOMRB 04 | H: 29 | GL: 10 | Wrench: 24 | Clamping Range mm: 6 - 12
• M 20 x 1,5 | Black Code: ExOXXOMRB 05 | H: 33 | GL: 10 | Wrench: 27 | Clamping Range mm: 10 - 14
• M 25 x 1,5 | Black Code: ExOXXOMRB ES4 | H: 32 | GL: 10 | Wrench: 29 | Clamping Range mm: 4 - 10
• M 25 x 1,5 | Black Code: ExOXXOMRB ES6 | H: 32 | GL: 10 | Wrench: 29 | Clamping Range mm: 6 - 12
• M 25 x 1,5 | Black Code: ExOXXOMRB 06/9-17 | H: 38 | GL: 10 | Wrench: 33 | Clamping Range mm: 9 - 17
• M 25 x 1,5 | Black Code: ExOXXOMRB E6-9 | H: 35 | GL: 10 | Wrench: 29 | Clamping Range mm: 9 - 14
• M 25 x 1,5 | Black Code: ExOXXOMRB E6 | H: 35 | GL: 10 | Wrench: 29 | Clamping Range mm: 11 - 17
• M 25 x 1,5 | Black Code: ExOXXOMRB 06 | H: 38 | GL: 10 | Wrench: 33 | Clamping Range mm: 13 - 18
• M 32 x 1,5 | Black Code: ExOXXOMRB E7 | H: 40 | GL: 10 | Wrench: 36 | Clamping Range mm: 15 - 21
• M 32 x 1,5 | Black Code: ExOXXOMRB 07 | H: 41 | GL: 10 | Wrench: 42 | Clamping Range mm: 18 - 25
• M 40 x 1,5 | Black Code: ExOXXOMRB E8 | H: 43 | GL: 10 | Wrench: 46 | Clamping Range mm: 19 - 28
• M 40 x 1,5 | Black Code: ExOXXOMRB 08 | H: 51 | GL: 10 | Wrench: 53 | Clamping Range mm: 22 - 32
• M 50 x 1,5 | Black Code: ExOXXOMRB 09 | H: 53 | GL: 18 | Wrench: 60 | Clamping Range mm: 30 - 38
• M 63 x 1,5 | Black Code: ExOXXOMRB 10 | H: 55 | GL: 18 | Wrench: 70 | Clamping Range mm: 34 - 44
• G3/4'' | Black Code: ExOXXOGRB 06 | H: 38 | GL: 10 | Wrench: 33 | Clamping Range mm: 13 - 18

Long Thread - Size table (selection)

• M 12 x 1,5 | Black Code: ExOXXOMRB 01L | H: 24 | GL: 15 | Wrench: 15 | Clamping Range mm: 3 - 6,5
• M 16 x 1,5 | Black Code: ExOXXOMRB 11S | H: 28 | GL: 15 | Wrench: 19 | Clamping Range mm: 4 - 8
• M 16 x 1,5 | Black Code: ExOXXOMRB 11 | H: 29 | GL: 15 | Wrench: 22 | Clamping Range mm: 5 - 10
• M 20 x 1,5 | Black Code: ExOXXOMRB 12RS | H: 29 | GL: 15 | Wrench: 24 | Clamping Range mm: 4 - 10
• M 20 x 1,5 | Black Code: ExOXXOMRB 12 | H: 29 | GL: 15 | Wrench: 24 | Clamping Range mm: 6 - 12
• M 20 x 1,5 | Black Code: ExOXXOMRB 13 | H: 33 | GL: 15 | Wrench: 27 | Clamping Range mm: 10 - 14
• M 25 x 1,5 | Black Code: ExOXXOMRB ES14 | H: 32 | GL: 15 | Wrench: 29 | Clamping Range mm: 4 - 10
• M 25 x 1,5 | Black Code: ExOXXOMRB ES16 | H: 32 | GL: 15 | Wrench: 29 | Clamping Range mm: 6 - 12
• M 25 x 1,5 | Black Code: ExOXXOMRB 14/9-17 | H: 38 | GL: 15 | Wrench: 33 | Clamping Range mm: 9 - 17
• M 25 x 1,5 | Black Code: ExOXXOMRB E14-9 | H: 35 | GL: 15 | Wrench: 29 | Clamping Range mm: 9 - 14
• M 25 x 1,5 | Black Code: ExOXXOMRB E14 | H: 35 | GL: 15 | Wrench: 29 | Clamping Range mm: 11 - 17
• M 25 x 1,5 | Black Code: ExOXXOMRB 14 | H: 38 | GL: 15 | Wrench: 33 | Clamping Range mm: 13 - 18
• M 32 x 1,5 | Black Code: ExOXXOMRB E15 | H: 40 | GL: 15 | Wrench: 36 | Clamping Range mm: 15 - 21
• M 32 x 1,5 | Black Code: ExOXXOMRB 15 | H: 41 | GL: 18 | Wrench: 42 | Clamping Range mm: 18 - 25
• M 40 x 1,5 | Black Code: ExOXXOMRB E16 | H: 43 | GL: 15 | Wrench: 46 | Clamping Range mm: 19 - 28
• M 40 x 1,5 | Black Code: ExOXXOMRB 16 | H: 51 | GL: 18 | Wrench: 53 | Clamping Range mm: 22 - 32

Technical specifications

• Series: ExO Series (Polyamide Ex-proof gland)
• Material: Polyamide PA6
• Protection Code: II 2G Ex eb IIC Gb II 2D Ex tb IIIC Db
• Certificates: IEP 20 ATEX 0750 X, ROHS, CE, PT, TUV
• Thread Standard: Metric (EN 60423)
• Colour: Black (RAL 9005)
• Standards: EN 60079-0, EN 60079-7, EN 60079-31
• Protection Class: IP68 (5 Bar)
• Operating Temperature Range: -30 °C to +100 °C
• Application Zones: ZONE1, ZONE2, ZONE21, ZONE22; Gas Groups IIA, IIB, IIC
• Cable Type: Unarmoured

Certifications & application notes
Certified for hazardous areas per ATEX and relevant EN standards. Suitable for installations in gas and dust zones indicated above. For ordering, specify metric or long-thread variant and the Black Code reference from the size tables.
