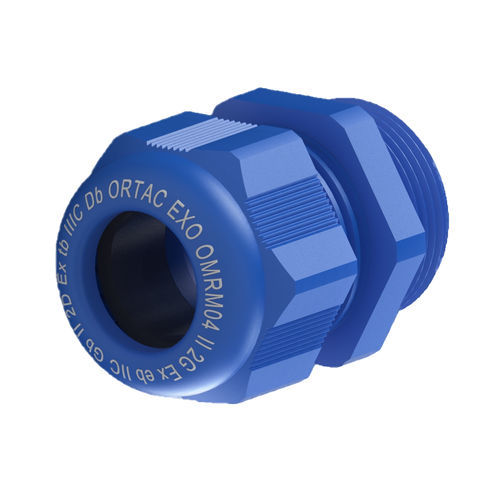

Polyamide cable gland ExO series
PA6IP68explosion-proof

Polyamide cable gland - ExO series - ORTAC - PA6 / IP68 / explosion-proof
Polyamide cable gland - ExO series - ORTAC - PA6 / IP68 / explosion-proof
Polyamide cable gland - ExO series - ORTAC - PA6 / IP68 / explosion-proof - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
polyamide, PA6
Protection level
explosion-proof, IP68
Other characteristics
metric, threaded
Cable diameter

Max.: 44 mm
(1.73 in)

Min.: 3 mm
(0.12 in)

Thread diameter

Max.: 63 mm
(2.48 in)

Min.: 12 mm
(0.47 in)

Clamping range

Max.: 44 mm
(1.7 in)

Min.: 3 mm
(0.1 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -30 °C
(-22 °F)

Description

Product name
Ex-i Blue EX - Metric and Long Thread

Overview
  • Type: ExO Series — polyamide (PA6) explosion-proof cable gland
  • Protection code: II 2G Ex eb IIC Gb; II 2D Ex tb IIIC Db
  • Certificates: IEP 20 ATEX 0750 X, RoHS, CE, PT, TUV
  • Gland body material: Polyamide PA6
  • Connection thread: Metric (EN 60423)
  • Color: Blue (RAL 5012)
  • Standards: EN 60079-0, EN 60079-7, EN 60079-31
  • Ingress protection: IP68 (5 bar)
  • Temperature range: -30 °C to +100 °C
  • Application zones: ZONE 1, ZONE 2, ZONE 21, ZONE 22; Gas groups IIA, IIB, IIC


Metric
  • M12 x 1.5 — ExOXXOMRM 01 — H 24 mm — GL 8 mm — Wrench 15 mm — Clamping range 3 - 6.5 mm
  • M16 x 1.5 — ExOXXOMRM 02 — H 28 mm — GL 8 mm — Wrench 19 mm — Clamping range 4 - 8 mm
  • M16 x 1.5 — ExOXXOMRM 03 — H 29 mm — GL 10 mm — Wrench 22 mm — Clamping range 5 - 10 mm
  • M20 x 1.5 — ExOXXOMRM 04RS — H 29 mm — GL 10 mm — Wrench 24 mm — Clamping range 4 - 10 mm
  • M20 x 1.5 — ExOXXOMRM 04 — H 29 mm — GL 10 mm — Wrench 24 mm — Clamping range 6 - 12 mm
  • M20 x 1.5 — ExOXXOMRM 05 — H 33 mm — GL 10 mm — Wrench 27 mm — Clamping range 10 - 14 mm
  • M25 x 1.5 — ExOXXOMRM ES4 — H 32 mm — GL 10 mm — Wrench 29 mm — Clamping range 4 - 10 mm
  • M25 x 1.5 — ExOXXOMRM ES6 — H 32 mm — GL 10 mm — Wrench 29 mm — Clamping range 6 - 12 mm
  • M25 x 1.5 — ExOXXOMRM 06/9-17 — H 38 mm — GL 10 mm — Wrench 33 mm — Clamping range 9 - 17 mm
  • M25 x 1.5 — ExOXXOMRM E6-9 — H 35 mm — GL 10 mm — Wrench 29 mm — Clamping range 9 - 14 mm
  • M25 x 1.5 — ExOXXOMRM E6 — H 35 mm — GL 10 mm — Wrench 29 mm — Clamping range 11 - 17 mm
  • M25 x 1.5 — ExOXXOMRM 06 — H 38 mm — GL 10 mm — Wrench 33 mm — Clamping range 13 - 18 mm
  • M32 x 1.5 — ExOXXOMRM E7 — H 40 mm — GL 10 mm — Wrench 36 mm — Clamping range 15 - 21 mm
  • M32 x 1.5 — ExOXXOMRM 07 — H 41 mm — GL 10 mm — Wrench 42 mm — Clamping range 18 - 25 mm
  • M40 x 1.5 — ExOXXOMRM E8 — H 43 mm — GL 10 mm — Wrench 46 mm — Clamping range 19 - 28 mm
  • M40 x 1.5 — ExOXXOMRM 08 — H 51 mm — GL 10 mm — Wrench 53 mm — Clamping range 22 - 32 mm
  • M50 x 1.5 — ExOXXOMRM 09 — H 53 mm — GL 18 mm — Wrench 60 mm — Clamping range 30 - 38 mm
  • M63 x 1.5 — ExOXXOMRM 10 — H 55 mm — GL 18 mm — Wrench 70 mm — Clamping range 34 - 44 mm
  • G3/4" — ExOXXOGRM 06 — H 38 mm — GL 10 mm — Wrench 33 mm — Clamping range 13 - 18 mm


Long Thread
  • M12 x 1.5 — ExOXXOMRM 01L — H 24 mm — GL 15 mm — Wrench 15 mm — Clamping range 3 - 6.5 mm
  • M16 x 1.5 — ExOXXOMRM 11S — H 28 mm — GL 15 mm — Wrench 19 mm — Clamping range 4 - 8 mm
  • M16 x 1.5 — ExOXXOMRM 11 — H 29 mm — GL 15 mm — Wrench 22 mm — Clamping range 5 - 10 mm
  • M20 x 1.5 — ExOXXOMRM 12RS — H 29 mm — GL 15 mm — Wrench 24 mm — Clamping range 4 - 10 mm
  • M20 x 1.5 — ExOXXOMRM 12 — H 29 mm — GL 15 mm — Wrench 24 mm — Clamping range 6 - 12 mm
  • M20 x 1.5 — ExOXXOMRM 13 — H 33 mm — GL 15 mm — Wrench 27 mm — Clamping range 10 - 14 mm
  • M25 x 1.5 — ExOXXOMRM ES14 — H 32 mm — GL 15 mm — Wrench 29 mm — Clamping range 4 - 10 mm
  • M25 x 1.5 — ExOXXOMRM ES16 — H 32 mm — GL 15 mm — Wrench 29 mm — Clamping range 6 - 12 mm
  • M25 x 1.5 — ExOXXOMRM 14/9-17 — H 38 mm — GL 15 mm — Wrench 33 mm — Clamping range 9 - 17 mm
  • M25 x 1.5 — ExOXXOMRM E14-9 — H 35 mm — GL 15 mm — Wrench 29 mm — Clamping range 9 - 14 mm
  • M25 x 1.5 — ExOXXOMRM E14 — H 35 mm — GL 15 mm — Wrench 29 mm — Clamping range 11 - 17 mm
  • M25 x 1.5 — ExOXXOMRM 14 — H 38 mm — GL 15 mm — Wrench 33 mm — Clamping range 13 - 18 mm
  • M32 x 1.5 — ExOXXOMRM E15 — H 40 mm — GL 15 mm — Wrench 36 mm — Clamping range 15 - 21 mm
  • M32 x 1.5 — ExOXXOMRM 15 — H 41 mm — GL 18 mm — Wrench 42 mm — Clamping range 18 - 25 mm
  • M40 x 1.5 — ExOXXOMRM E16 — H 43 mm — GL 15 mm — Wrench 46 mm — Clamping range 19 - 28 mm
  • M40 x 1.5 — ExOXXOMRM 16 — H 51 mm — GL 18 mm — Wrench 53 mm — Clamping range 22 - 32 mm


Notes
  • Available in metric and long thread variants with the listed AG/thread sizes and corresponding blue product codes.
  • Material: Polyamide PA6. Color: Blue (RAL 5012).
  • Certified to ATEX and referenced standards. IP68 rated to 5 bar. Suitable for hazardous zones ZONE 1 / ZONE 2 / ZONE 21 / ZONE 22 and gas groups IIA–IIC.
