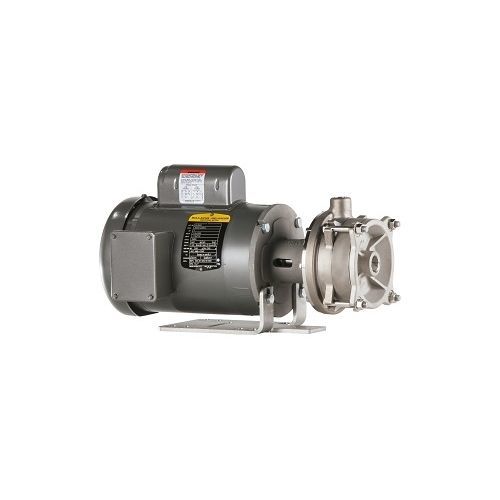

Centrifugal pump MS50
watermagnetic-drivestationary

centrifugal pump
centrifugal pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
magnetic-drive
Technology
centrifugal
Mobility
stationary, mobile
Domain
industrial
Material
stainless steel, PTFE, ceramic
Protection level
standard
Other characteristics
standard, mechanical, horizontal mount, multi-stage, double, seal, flush
Flow

76 l/min
(20.07708 us gal/min)

Pressure

14 bar
(203.053 psi)

Head

116 m
(380'06" )

Fluid temperature

149 °C
(300.2 °F)

Description

Standard NEMA 56C motor Mechanical seal: 5/8″ Type 21 Fluorocarbon, carbon vs. ceramic standard. Type 9 PTFE and Type 21 Fluorocarbon double seal optional Seal flush and seal quench optional Optional power frame available Standard bushings are graphite, with glass filled PTFE optional Standard “O”-rings are Fluorocarbon with EPR, neoprene or PTFE optional
