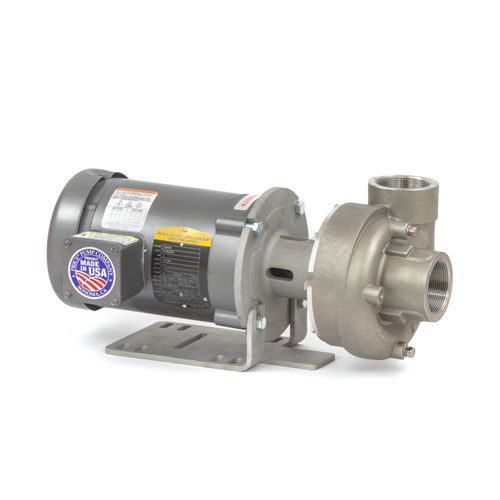

Centrifugal pump RC serieswatermagnetic-driveself-priming
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- magnetic-drive
- Priming
- self-priming
- Technology
- centrifugal
- Mobility
- stationary, mobile
- Domain
- industrial, chemical
- Applications
- transfer, cooling tower
- Material
- PTFE, bronze, ceramic
- Other characteristics
- compact, standard, high-efficiency, mechanical, horizontal mount, double, close-coupled, open, seal, flush
- Flow
1,514 l/min
(399.95649 us gal/min)- Head
23 m
(75'05" )- Fluid temperature
149 °C
(300.2 °F)
Description
Compact close-coupled design.
Motors are standard NEMA ‘C’ face design with ball bearings.
Single and three-phase are available in Drip Proof, Totally Enclosed or Explosion Proof design.
Semi-open, high-efficiency Francis vane type impeller.
Mechanical seal: 5/8″ Type 6A Buna, carbon vs. ceramic, single seal standard
Fluorocarbon Type 21 and PTFE Type 9 single seals optional. Other seal faces and
elastomers available.
Double Type 21 Fluorocarbon, neoprene or EPR seals optional
Seal flush and seal quench optional
Optional Power Frame available
Materials:
RC AI (All Iron)
RC BF (Bronze Fitted)
Applications
Industry- Aquaculture, Coolant pumps and cold water circulating pumps, Chemical transfer pumps, Cooling Tower pumps
O.E.M.- Circulating Washers, Machine tool coolants
