Measurement acoustic emission sensor WI800/1

spectrum analysismonitoringpiezoelectric

Product description

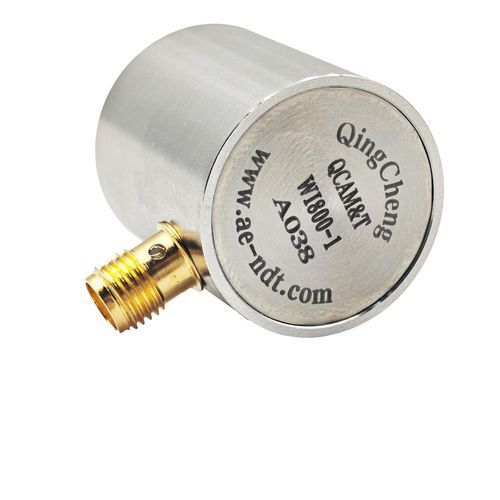

The WI800/1 is a broadband acoustic emission (AE) sensor with an integral preamplifier, designed for AE monitoring, spectral analysis and research. It offers a frequency range of 50 kHz–800 kHz and a resonant frequency at 600 kHz, providing broad coverage for most AE applications and delivering rich, comprehensive signals for analysis.

Features

• Built-in integral preamplifier (26 dB, 5 V)
• SMA connector located on the side
• Ceramic contact face for electromagnetic isolation between the housing and the test object
• SUS-304 housing with full shielding to reduce electromagnetic interference
• Unique serial number per unit for production test traceability
• Sensitivity and response-curve testing performed before delivery according to GBT 19801-2005

Technical Specs

• Model: WI800/1
• Frequency range: 50 kHz–800 kHz
• Resonant frequency: 600 kHz
• Sensitivity peak (Ref V/(m/s)): >65 dB
• Integral preamplifier: 26 dB, 5 V
• Operating temperature: -20 °C to 50 °C
• Size (DxH): 22 × 25.5 mm
• Weight: 33.63 g
• Case material: SUS-304 (shielded)
• Face material: Ceramic (electromagnetic isolation)
• Protection grade: IP62
• Connector: SMA (side)

Accessories

• Signal cable options: RG178, RG316
• Hold-down: Saddle-type

Further information
Sensor Data Sheet: /sds/WI800-1.pdf
Quality control: each unit has a unique serial number; sensitivity and response curves tested according to GBT 19801-2005
