Leak detection acoustic emission sensor W500/3

monitoringfor composite and concrete structure inspectionfor metal structure inspection

Description

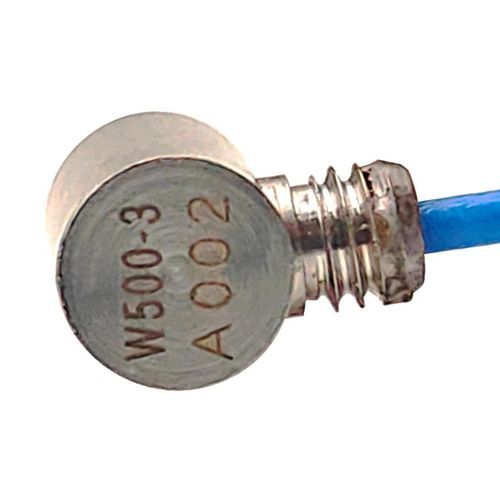

The W500/3 is a miniature acoustic emission sensor designed for medium- and high-temperature monitoring. It has a resonant frequency of 260 kHz and a broadband response from 40 kHz to 600 kHz, making it suitable for detecting and monitoring crack growth and structural damage in pressure vessels, storage tanks, pipelines, composite materials and metal structures. The sensor features a stainless-steel case, ceramic face, and an integral BNC cable with side connector.

Applications

• Acoustic emission monitoring of pressure vessels and storage tanks
• Pipeline integrity and leak/crack detection
• Inspection of composite materials and metal structures
• On-site condition monitoring in industrial environments

Features

• Resonant frequency: 260 kHz
• Broadband frequency range: 40 kHz – 600 kHz
• High working temperature capability: up to 177 °C
• Compact size (Φ7.8 x 14 mm) and low weight
• Peak sensitivity >55 dB
• Protection rating IP65

Technical specifications

• Resonant frequency (Ref V/(m/s)): 260 kHz
• Frequency range: 40 kHz - 600 kHz
• Peak sensitivity (Ref V/(m/s)): >55 dB
• Working temperature: −60 to 177 °C
• Size (DxH): Φ7.8 x 14 mm
• Weight: 24 g
• Case material: SUS-304 (stainless steel)
• Face material: Ceramic
• Protection grade: IP65
• Connector: BNC on integral cable
• Connector location: Side
• Cable length: 2 m
• Accessories: Signal cable model RG178-PFA; Hold-down: saddle type; Preamplifier: PAS3 / PAV
