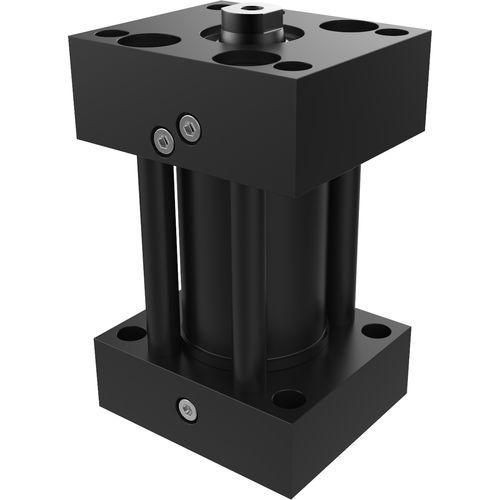

Hydraulic cylinder AVTL

pistondouble-actingCNOMO

This support uses the same locking principle as T-Lock® and maintains the exact support point position after hydraulic disconnection. It is completely insensitive to vibrations. These supports use the principle of elasticity of materials. Their operation comprises four phases: 1) Support piston release: PC = 300 bar 2) Contact with workpiece: Simultaneous pressure PA + PB = elastic deformation of the workpiece 3) Removal of pressure: PA + PB = 0 The workpiece then pushes the rod due to elasticity. The residual support force is provided by seal friction 4) Piston lock PC = 0: The position is maintained without pressure. • rear sensor rod to CNOMO standards • custom double clamping may be made. • pressure intensifier • special models
