Beech workbench 08-WT-100-080-B
height-adjustableelectric

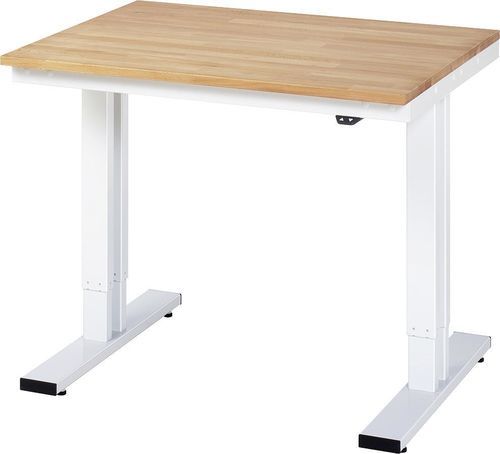

Beech workbench - 08-WT-100-080-B - RAU - height-adjustable / electric
Beech workbench - 08-WT-100-080-B - RAU - height-adjustable / electric
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Other characteristics
height-adjustable, electric
Length

800 mm
(31 in)

Width

1,000 mm
(39 in)

Height

Max.: 1,120 mm
(44 in)

Min.: 720 mm
(28 in)

Load

300 kg
(661.4 lb)

Description

Product description
  • Beech solid top, 25 mm thickness.
  • Beech lamellae with finger-joint bonding. Front edge rounded, other edges chamfered. Surface protected with an eco-friendly oil finish. Solid beech top produced from PEFC-certified regional timber.
  • System underframe dimensions: W990 × D750 × H700–1100 mm.
  • 2 double lifting columns (80 × 50 mm, tested according to EN 60335-1) including control unit and connection cable with plug. Skid runners made from profiled steel tube (100 × 30 × 3 mm) with leveling feet. Complete frame of profiled steel tube (50 × 25 × 2.5 mm) mounted under the top. Control: up/down push button.
  • Electric adjustment via the 2 double lifting columns with integrated linear drives. Low-noise, stepless and fully synchronous height adjustment even under asymmetrical load. Adjustment speed: 38 mm/s (no load). Duty cycle: 10 % (6 minutes per hour or 2 minutes continuous at full load). Standby power consumption: 0.1 W.
  • CE conformity: Product complies with applicable harmonization directives (including Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU). Applied harmonized standards include DIN EN ISO 12100:2011-03 and DIN EN 1570-1.
  • Note: System can optionally operate autonomously via a battery box (accessory), removing need for permanent mains connection.
  • Delivery time: 5 working days (product information).


Additional information
  • Available width variants: 750 / 1000 / 1250 / 1500 / 2000 mm (configurable).
  • Available depths: 800 mm (selection: 800 mm or 1000 mm).


Technical specifications
  • Width: 1000 mm
  • Depth: 800 mm
  • Height from: 720 mm
  • Height to: 1120 mm
  • Static surface load: 300 kg
  • Top type: Beech solid wood worktop
  • Top thickness: 25 mm
  • System underframe (dimensions): W990 × D750 × H700–1100 mm
  • Drive: 2 double lifting columns (80 × 50 mm) with integrated linear drives
  • Frame / runners: Runners profiled steel tube 100 × 30 × 3 mm; frame profiled steel tube 50 × 25 × 2.5 mm
  • Control: Up/Down push button (optional comfort control with memory available as accessory)
  • Adjustment speed: 38 mm/s (no load)
  • Duty cycle: 10 % (6 minutes per hour or 2 minutes continuous at full load)
  • Standby power consumption: 0.1 W
  • Test / standards: Tested according to EN 60335-1; CE conformity; harmonized standards applied (e.g. DIN EN ISO 12100, DIN EN 1570-1)
