Beech workbench 06-625B80-10-KM04.11
for workshopswith drawer3-drawer

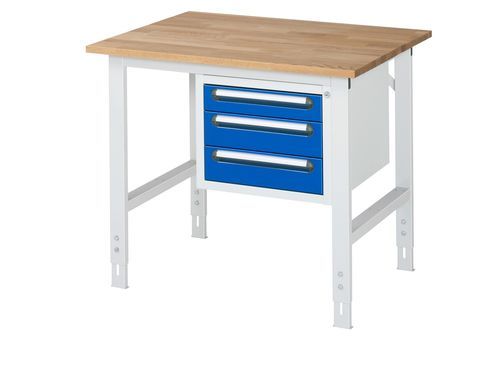

Beech workbench - 06-625B80-10-KM04.11 - RAU - for workshops / with drawer / 3-drawer
Beech workbench - 06-625B80-10-KM04.11 - RAU - for workshops / with drawer / 3-drawer
Beech workbench - 06-625B80-10-KM04.11 - RAU - for workshops / with drawer / 3-drawer - image - 2
Beech workbench - 06-625B80-10-KM04.11 - RAU - for workshops / with drawer / 3-drawer - image - 3
Beech workbench - 06-625B80-10-KM04.11 - RAU - for workshops / with drawer / 3-drawer - image - 4
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Applications
for workshops
Other characteristics
with drawer, 3-drawer, mobile, height-adjustable
Length

1,000 mm
(39 in)

Width

800 mm
(31 in)

Height

Min.: 760 mm
(30 in)

Max.: 1,080 mm
(43 in)

Load

500 kg
(1,102.3 lb)

Description

Description
  • Beech solid worktop, thickness 25 mm.
  • Beech lamella with finger-joint gluing. Front edge radius, other edges chamfered. Surface protection by environmentally friendly lacquered oil. Classic worktop: load-bearing, compressive-resistant, durable, natural, wear-resistant, reusable. 100% in-house production with PEFC-certified raw material from sustainable/regional forestry.
  • System underframe, W900 x D660 x H740-1060 mm.
  • 4-leg frame with two pairs of frame legs made from profile steel tube (60x30x2 mm) including depth braces (top and bottom). Frame feet with end piece including height adjustment. Crossbars from profile steel tube (50x25x2 mm) under the worktop (front and rear). Rear stiffening traverses (left, centre and right) connecting the frame leg pair with the rear crossbar. Frame feet prepared for fitting/retrofitting a castor set.
  • Note: This base table (complete model) can be complemented with an add-on table of the same depth.


Equipment
  • Underframe drawer unit Series E, W480 x D600 x H395 mm.
  • 3 x drawers: 1 x H90, 2 x H120 mm. Drawer interior W390 x D560 mm, load capacity 35 kg, 90% extension. Usable drawer height equals front height minus 15 mm. Drawer box fully closed to optimally accept drawer divider sets.
  • Continuous, partially integrated handle strip (including labelling strip).
  • Central lock (pin cylinder lock with 2 keys).


Variants & Configuration
  • Available widths: 750 mm, 1000 mm (standard on the page), 1250 mm, 1500 mm, 2000 mm.
  • Depths: 800 mm (standard), 1000 mm.
  • Top types: Beech solid top (standard), MDF top, melamine top.
  • Colour and frame options: various RAL colours selectable (incl. RAL7035 light grey, RAL5010 gentian blue, RAL7016 anthracite grey, RAL3000 flame red etc.).
  • Optional express production (order received by 11:00) for an extra charge.


Price & Delivery
  • Net price (excl. VAT) main product variant: €930.00.
  • Gross price (incl. VAT): €1,106.70.
  • Delivery time: 5 working days.
  • Free shipping from €100 net within Germany.


Technical specifications
  • Extension type: 90% partial extension
  • Width (example main variant): 1000 mm
  • Depth (example main variant): 800 mm
  • Height adjustable: from 760 mm to 1080 mm
  • Static surface load: 500 kg
  • Number of drawers: 3 (1x H90, 2x H120)
  • Top type: Beech solid worktop
  • Top thickness: 25 mm
  • Frame: profile steel tube 60x30x2 mm (frame legs), cross braces 50x25x2 mm, rear stiffening traverses, frame feet with height adjustment, prepared for castor set
  • Drawer internal dimensions: W390 x D560 mm; drawer load capacity: 35 kg; extension: 90%
  • Optional castor set: mounting height 150 mm (changes working height); for mobile configuration reduced surface load max. 450 kg
  • EAN: 4040376186997
  • Article number: 06-625B80-10-KM04.11
