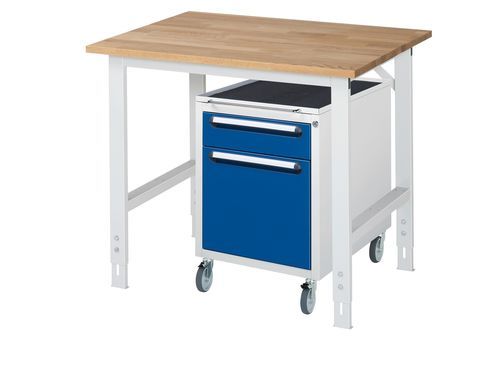

Beech workbench 06-625B80-10-KM08.11

with drawer2-drawerheight-adjustable

Description

• Beech solid worktop, thickness 25 mm.
• Beech lamella top with finger-joint bonding. Front edge radius, other edges chamfered. Surface protection with eco-friendly lacquer-oil. Classic worktop: load-bearing, compression-resistant, durable, natural, wear-resistant, reusable. 100% in-house production from PEFC-certified raw material from sustainable regional forestry.
• System substructure, W900 x D660 x H740–1060 mm (example/base).

Equipment

• 4-leg frame with two pairs of frame feet made of rectangular steel tube (60x30x2 mm) including depth braces (top and bottom).
• Bottom of frame feet with end element including height adjustment.
• Cross braces made of rectangular steel tube (50x25x2 mm) under the worktop (front and rear).
• Rear reinforcement traverses (left, center and right) connecting the frame foot pair and the rear cross brace.
• Frame feet prepared for fitting/retrofitting a castor set.
• Optional roll-container/drawer accessories and system assemblies available (details on accessory and equipment options: Roll-Container Series E, drawer options, drawer dimensions and load capacity see technical data and equipment descriptions).

Technical data (overview)
Pull-out type: Partial extraction 90%
Width: 1000 mm
Static surface load: 500 kg
Number of drawers: 2
Depth: 800 mm
Height from: 760 mm
Height to: 1080 mm
Top type: Beech solid worktop
Top thickness: 25 mm

Characteristics / technical specifications

• EAN: 4040376243324
• Article number (complete model): 06-625B80-10-KM08.11
• Top material: Beech solid, lamella construction with finger-joint bonding
• Top thickness: 25 mm
• Frame: 4-leg frame, rectangular steel tube 60x30x2 mm
• Cross braces: Rectangular steel tube 50x25x2 mm
• System substructure dimensions (example/base): W900 x D660 x H740–1060 mm
• Available width variants (examples): 750 / 1000 / 1250 / 1500 / 2000 mm (configurable)
• Depth: 800 mm (standard, alternatively 1000 mm available)
• Frame height adjustment: adjustable (specified: height from 760 mm to 1080 mm)
• Static surface load: 500 kg
• Drawer partial extraction: 90%
