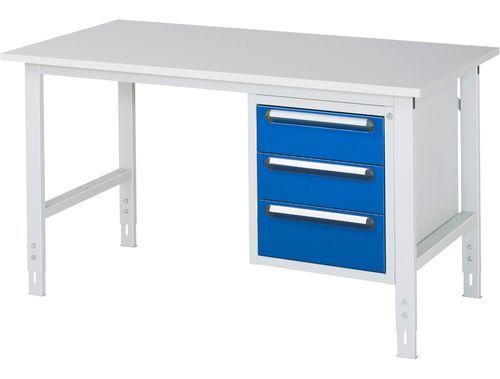

Steel workbench 06-625M80-15-KM06.11
with drawer3-drawerheight-adjustable

Steel workbench - 06-625M80-15-KM06.11 - RAU - with drawer / 3-drawer / height-adjustable
Steel workbench - 06-625M80-15-KM06.11 - RAU - with drawer / 3-drawer / height-adjustable
Steel workbench - 06-625M80-15-KM06.11 - RAU - with drawer / 3-drawer / height-adjustable - image - 2
Steel workbench - 06-625M80-15-KM06.11 - RAU - with drawer / 3-drawer / height-adjustable - image - 3
Steel workbench - 06-625M80-15-KM06.11 - RAU - with drawer / 3-drawer / height-adjustable - image - 4
Add to favorites
Compare this product

Characteristics

Worktop material
steel
Other characteristics
with drawer, 3-drawer, height-adjustable, customizable
Length

1,500 mm
(59 in)

Width

800 mm
(31 in)

Height

Max.: 1,080 mm
(43 in)

Min.: 760 mm
(30 in)

Load

500 kg
(1,102.3 lb)

Description

Description
  • Melamine-faced worktop, 22 mm thickness. Both faces with light-grey direct melamine coating; melamine coating conforming to DIN 68765. Splash-resistant and stain-resistant; surface properties according to EN14322/EN14323: abrasion resistance class 3A, scratch resistance N>1.5, stain resistance ≥ 3 (e.g. acetone, alcohol, organic solvents, petrol), crack resistance ≥ 3, cigarette ember behaviour class 3, water vapor resistance class 4. Certificate of harmlessness for migration behavior; suitable for use in food-related areas. Substrate classified B2 (normally flammable) per DIN 4102. Particleboard core according to EN309/EN312 (emission class E1). All-round light-grey antistatic ABS edge.
  • System underframe dimensions: W1400 x D660 x H740–1060 mm.
  • 4-leg frame with two pairs of profile steel tube legs (60×30×2 mm) including depth braces (top and bottom). Foot elements with end caps and height adjustment. Crossbars from profile steel tube (50×25×2 mm) under the worktop (front and rear). Rear stiffening traverses (left, centre, right) connecting leg pairs to rear crossbar. Legs prepared for retrofitting a castor set.
  • Note: This base table (complete model) can be complemented with an add-on table of the same depth.


Equipment
  • Under-desk container Series E, W480 x D600 x H545 mm.
  • 3 drawers: 2 × H150 mm, 1 × H180 mm.
  • Drawer inner dimensions: W390 x D560 mm; load capacity 35 kg; 90% extension. Useful drawer height equals front height minus 15 mm. Fully enclosed drawer pan for optimal use with drawer divider sets.
  • Continuous, partially integrated handle rail (including label strip).
  • Central locking (pin-cylinder lock with 2 keys).


Technical data
  • Extension type: 90% partial extension
  • Width: 1500 mm
  • Depth: 800 mm
  • Height (adjustable): 760–1080 mm
  • Static surface load: 500 kg
  • Number of drawers: 3
  • Worktop type: Melamine-faced worktop
  • Worktop thickness: 22 mm


Characteristics / technical specifications
  • Article number: 06-625M80-15-KM06.11
  • EAN: 4040376231314
  • Available widths: 750 / 1000 / 1250 / 1500 / 2000 mm (configurator options)
  • Available top types: Melamine (standard), MDF, solid beech (options)
  • Frame colour and equipment: various RAL colours selectable for frame and equipment
  • Lead time: approx. 5 working days (as indicated on product page)
