Beech workbench 06-625B80-20-KM07.11
for workshopswith drawer4-drawer

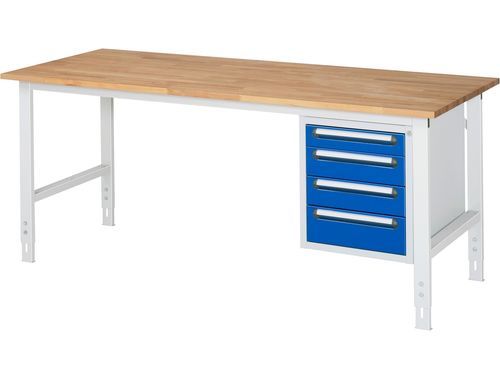

Beech workbench - 06-625B80-20-KM07.11 - RAU - for workshops / with drawer / 4-drawer
Beech workbench - 06-625B80-20-KM07.11 - RAU - for workshops / with drawer / 4-drawer
Beech workbench - 06-625B80-20-KM07.11 - RAU - for workshops / with drawer / 4-drawer - image - 2
Beech workbench - 06-625B80-20-KM07.11 - RAU - for workshops / with drawer / 4-drawer - image - 3
Beech workbench - 06-625B80-20-KM07.11 - RAU - for workshops / with drawer / 4-drawer - image - 4
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Applications
for workshops
Other characteristics
with drawer, 4-drawer, height-adjustable
Length

2,000 mm
(79 in)

Width

800 mm
(31 in)

Height

Min.: 760 mm
(30 in)

Max.: 1,080 mm
(43 in)

Load

500 kg
(1,102.3 lb)

Description

Product description
  • Solid beech worktop, thickness 25 mm.
  • Beech lamella glued with finger-joint. Front edge radius, other edges chamfered. Surface protection by eco-friendly lacquer oil. Classic worktop characteristics: load-bearing, pressure-resistant, long-lasting, natural, wear-resistant and reusable. 100% in-house production (from tree to worktop) with PEFC-certified raw material from sustainable regional forestry.
  • System underframe, W1900 x D660 x H740-1060 mm.
  • Note: This base table (complete model) can be complemented with an add-on table of the same depth.


Frame and assembly
  • 4-leg frame with two pairs of frame feet made of profiled steel tube (60 x 30 x 2 mm) including depth braces (top and bottom).
  • Frame feet fitted with end element including height adjustment.
  • Crossbars of profiled steel tube (50 x 25 x 2 mm) under the worktop (front and back).
  • Rear stiffening traverses (left, center and right) connecting the frame foot pair and the rear crossbar.
  • Frame feet prepared for mounting/retrofitting a roll set.


Equipment
  • Underframe container Serie E, W480 x D600 x H545 mm.
  • 4 drawers: 1 x H90, 2 x H120, 1 x H150 mm.
  • Drawer interior W390 x D560 mm, load capacity 35 kg, extension 90%. Usable drawer height equals front height minus 15 mm. Drawer pan fully closed to optimally accommodate drawer organization sets.
  • Continuous, partially integrated handle strip (including label strip).
  • Central lock (pin cylinder lock with 2 keys).


Extensions & options
  • Express production available (surcharge may apply).
  • Roll set available for mobility; when mounted the floor load is reduced and the adjustable working height is changed by the roll set's build height.


Technical specifications
  • Extension type: Partial extension 90%
  • Width: 2000 mm
  • Depth: 800 mm
  • Height from: 760 mm
  • Height to: 1080 mm
  • Static surface load: 500 kg
  • Number of drawers: 4
  • Top type: Solid beech worktop
  • Top thickness: 25 mm
