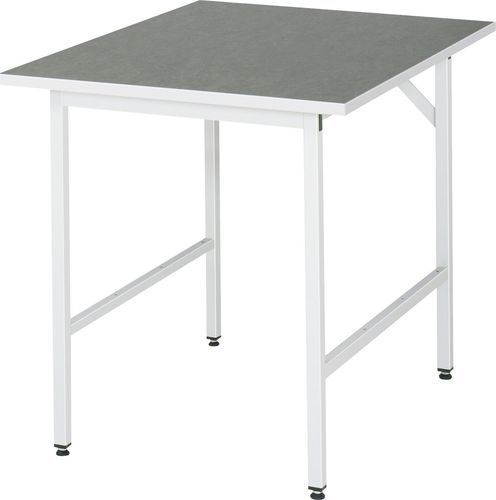

Steel workbench 06-500L10-07.12

disassemblablemetal

Short description

• Worktop with linoleum/universal covering, thickness 25 mm.
• Top layer: 2.0 mm soft, light-grey marbled universal/linoleum covering. Antistatic, fungicidal, bacteriostatic, splash-proof, dirt-resistant, temperature-resistant.
• Generally resistant to acids, oils, fats, solvents and chemicals. Sensitive to alkalis with pH above 9 (e.g. soap, ammonia).
• Covering is flame-retardant (B1) according to DIN 4102. Panel core: chipboard according to EN309 / EN312 (emission class E1). Bottom with balancing layer. All-round light-grey, antistatic ABS edge.

Frame / Structure

• System substructure dimensions: B590 x T860 x H780-830 mm.
• 4-leg frame with two pairs of leg posts made of profile steel tube (30 x 30 x 2 mm), including depth bracing (top and bottom).
• Leg feet at bottom with end cap and height adjustment.
• Cross members from profile steel tube (50 x 25 x 2 mm) under the worktop (front and rear).
• Rear stiffening traverses (left and right) connecting leg pairs and rear cross member.
• Leg feet prepared for fitting/retrofitting a castor set.
• Note: base table can be supplemented with an add-on table of the same depth.

Configuration / Options

• Widths (options): 750 (selected), 1000, 1250, 1500, 2000, 2500 (currently unavailable), 3000 (currently unavailable), 4000 (currently unavailable).
• Top / panel types (options): Melamine panel; EGB-melamine panel; MDF panel; Solid beech panel; Linoleum panel (selected); Stainless steel panel; Steel sheet panel.
• Depths (options): 800 mm; 1000 mm (selected).
• Mobility (options): Stationary (selected); Mobile (castors) (currently unavailable).
• Frame colors – examples from configurator: RAL3000 flame red, RAL5002 ultramarine blue, RAL5010 gentian blue, RAL5012 light blue, RAL5015 sky blue, RAL5018 turquoise blue, RAL5011 steel blue, RAL6011 reseda green, RAL7035 light grey (standard), RAL7045 tele grey, RAL9006 white aluminium, RAL9011 graphite black, RAL7031 blue grey, RAL7016 anthracite grey.

Technical table (short)
Width: 750 mm
Surface load (stationary): 300 kg
Depth: 1000 mm
Height from: 800 mm
Height to: 850 mm
Top / panel type: Universal / linoleum covering worktop
Panel thickness: 25 mm

Characteristics / Technical specifications

• Product name / series: Arbeitstisch Serie Jerry.
• EAN: 4040376152251.
• Standard width of shown configuration: 750 mm (other widths available).
• Standard depth of shown configuration: 1000 mm (800 mm also available).
• Panel thickness: 25 mm; top covering: 2.0 mm linoleum/universal covering, light-grey marbled.
• Covering properties: antistatic, fungicidal, bacteriostatic, splash-proof, dirt-resistant, temperature-resistant; flame-retardant (B1 according to DIN 4102).
• Panel core: chipboard according to EN309 / EN312 (emission class E1); bottom with balancing layer; all-round ABS edge (light grey), antistatic.
• System substructure dimension (information): B590 x T860 x H780-830 mm.
• Frame: 4-leg frame with two leg pairs made of profile steel tube 30 x 30 x 2 mm; depth bracing top and bottom; cross members 50 x 25 x 2 mm under the worktop (front and rear); rear stiffening traverses; leg feet with end cap and height adjustment.
• Prepared for castor set / retrofitting: leg feet prepared for acceptance of a castor set (castor set optional).
• Surface load (stationary): 300 kg.
• Delivery condition: delivered unassembled (assembly instructions available for Serie Jerry).
