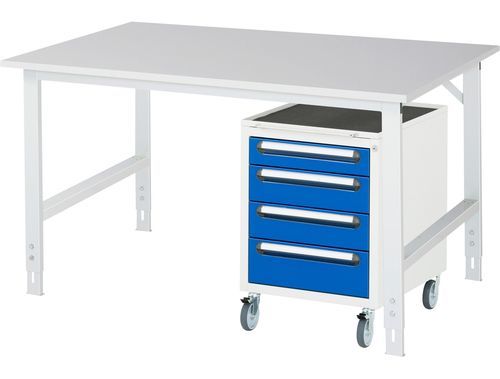

Steel workbench 06-625M80-15-KM10.11
assemblyfor workshopsindustrial

Steel workbench - 06-625M80-15-KM10.11 - RAU - assembly / for workshops / industrial
Steel workbench - 06-625M80-15-KM10.11 - RAU - assembly / for workshops / industrial
Steel workbench - 06-625M80-15-KM10.11 - RAU - assembly / for workshops / industrial - image - 2
Steel workbench - 06-625M80-15-KM10.11 - RAU - assembly / for workshops / industrial - image - 3
Steel workbench - 06-625M80-15-KM10.11 - RAU - assembly / for workshops / industrial - image - 4
Add to favorites
Compare this product

Characteristics

Worktop material
steel
Applications
for workshops, assembly, industrial
Other characteristics
with drawer, 4-drawer, mobile, modular, height-adjustable, with cabinet, for heavy loads, customizable, heavy-duty
Length

800 mm
(31 in)

Width

1,500 mm
(59 in)

Height

Max.: 1,060 mm
(42 in)

Min.: 740 mm
(29 in)

Load

500 kg
(1,102.3 lb)

Description

Product description
  • Worktop with 22 mm melamine resin coating.
  • Top and underside with light-grey direct melamine resin coating (melamine resin coating according to DIN 68765). Splash-proof and stain-resistant.
  • Surface properties according to EN14322/EN14323: abrasion resistance Class 3A; scratch resistance N>1.5; stain resistance level ≥3 (e.g. acetone, alcohol, organic solvents, petrol); crack susceptibility level ≥3; cigarette ember behaviour Grade 3; steam behaviour Grade 4.
  • Certificate regarding migration behaviour; suitable for use in food-related areas.
  • Cover normally flammable (B2) according to DIN 4102.
  • Panel core made of chipboard according to EN309/EN312 (emission class E1).
  • All-round light-grey antistatic ABS edging.
  • System underframe B1400 x T660 x H740-1060 mm.
  • 4-leg frame with two pairs of frame feet made of profile steel tube (60 x 30 x 2 mm) including depth braces top and bottom. Frame feet bottom with end element including height adjustment.
  • Transverse bars made of profile steel tube (50 x 25 x 2 mm) under the worktop (front and rear).
  • Rear stiffening traverses (left, centre and right) connecting the frame foot pair and the rear transverse bar.
  • The frame feet are prepared for fitting/retrofitting a castor set.
  • Note: This base table (complete model) can be extended with an add-on table of the same depth.


Equipment
  • Roll-container series E, B480 x T600 x H690 mm.
  • 4 x drawers (1 x H90, 2 x H120, 1 x H150 mm).
  • Drawer interior B390 x T560 mm, load capacity 35 kg, 90% extension (partial extension 90%).
  • Usable drawer height corresponds to front height minus 15 mm; drawer tub fully closed for optimal use of drawer divider sets.
  • Continuous, partially integrated handle strip (including label strip).
  • Central locking (cylinder lock with 2 keys).
  • Top of cabinet includes metal support with 4-sided roll-off edge and anti-slip mat, height 20 mm; sliding bow at the front of the metal support (projects 50 mm).
  • 4 swivel castors, 2 with brake; wheel diameter 100 mm, overall height 125 mm; tread thermoplastic rubber (grey, non-marking, 85° Shore); wheel body polypropylene; swivel castors with brake at front (left and right).
  • Maximum total load capacity 450 kg.


Additional information
  • Top options selectable: melamine panel (standard), solid beech top or MDF panel (configurable).
  • Depth and width variants configurable (e.g. widths 750 / 1000 / 1250 / 1500 / 2000 mm; depth 800 mm or 1000 mm).
  • Express production (surcharge) available; delivery time indicated on the product page: delivery time 5 working days.


Technical specifications
  • Extension type: partial extension 90%
  • Width: 1500 mm (configurable)
  • Depth: 800 mm (configurable)
  • Height: from 760 mm to 1080 mm (adjustable)
  • Static surface load: 500 kg
  • Number of drawers: 4
  • Top type: melamine-coated worktop
  • Top thickness: 22 mm
  • System underframe: B1400 x T660 x H740-1060 mm
  • Frame material: profile steel tube (frame feet 60 x 30 x 2 mm; transverse bars 50 x 25 x 2 mm)
  • Panel core: chipboard according to EN309/EN312 (emission class E1)
