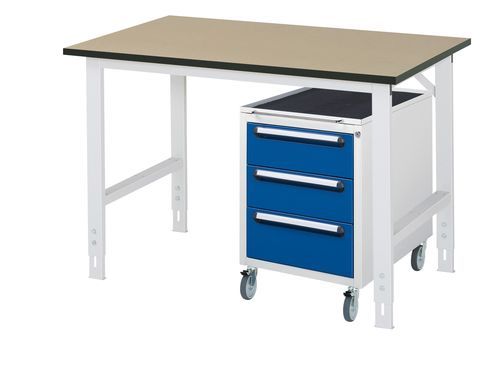

Steel workbench 06-625F80-12-KM09.11
for workshopsheight-adjustablemodular

Steel workbench - 06-625F80-12-KM09.11 - RAU - for workshops / height-adjustable / modular
Steel workbench - 06-625F80-12-KM09.11 - RAU - for workshops / height-adjustable / modular
Steel workbench - 06-625F80-12-KM09.11 - RAU - for workshops / height-adjustable / modular - image - 2
Steel workbench - 06-625F80-12-KM09.11 - RAU - for workshops / height-adjustable / modular - image - 3
Steel workbench - 06-625F80-12-KM09.11 - RAU - for workshops / height-adjustable / modular - image - 4
Add to favorites
Compare this product

Characteristics

Worktop material
steel
Applications
for workshops
Other characteristics
height-adjustable, modular, 3-drawer, with drawer
Length

1,250 mm
(49 in)

Width

800 mm
(31 in)

Height

Min.: 760 mm
(30 in)

Max.: 1,080 mm
(43 in)

Load

Min.: 0 kg
(0 lb)

Max.: 500 kg
(1,102.3 lb)

Description

Product overview
  • MDF worktop (medium-density fibreboard), thickness 22 mm.
  • Wood-fibre panel with homogeneous structure and high density; fine, smooth and wear-resistant surface. Classification EN622-5 MDF / EN120 / EN322. All-round black ABS edge.
  • Modular substructure, base dimensions: W1150 x D660 x H740-1060 mm depending on configuration.
  • 4-leg frame with two pairs of leg profiles in steel tube (60 x 30 x 2 mm) including depth bracing (top and bottom).
  • Leg feet with end piece and height adjustment.
  • Crossbars in steel tube (50 x 25 x 2 mm) under the worktop (front and rear).
  • Rear stiffening traverses (left, centre and right) connecting leg pairs to the rear crossbar.
  • Frame feet prepared for mounting/retrofitting a set of castors.
  • Note: This base table (complete model) can be extended with an add-on table of the same depth.


Equipment / accessories (note)
  • Optional mobile pedestal Series E, dimensions W480 x D600 x H690 mm; variants with drawers (e.g. 3 drawers: 2xH150, 1xH180 mm).
  • Drawer inner dimensions: W390 x D560 mm; typical drawer load capacity 35 kg; extension: partial extension 90% (variant dependent).
  • Continuous, partly integrated handle strip (including label strip) and central lock (pin-cylinder lock with 2 keys) available.
  • Optional metal top on cabinet/container with 4-sided upstand and anti-slip mat; sliding handle on front of metal top possible.
  • Castors: 4 swivel castors, 2 with brake; wheel diameter 100 mm, tread thermoplastic rubber, wheel body polypropylene.


Load & delivery information
  • Uniform surface load (stationary) up to 500 kg depending on configuration.
  • Total load capacity and maximum loads depend on configuration (with accessories, e.g. mobile pedestal: max. 450 kg).
  • Lead time (standard configuration): approx. 5 working days.


Technical characteristics / specifications
  • Drawer type: partial extension 90%.
  • Width (selectable): 1250 mm (standard variant selected).
  • Depth: 800 mm (optional 1000 mm available).
  • Frame / table height adjustment range: approx. 760 mm to approx. 1080 mm.
  • Top: MDF worktop.
  • Top thickness: 22 mm.
  • Top classification: EN622-5 / EN120 / EN322.
  • Frame: steel tube profile 60 x 30 x 2 mm; crossbars 50 x 25 x 2 mm.
  • Prepared for retrofitting: castor set mounting at frame feet.
  • Number of drawers (with combined equipment): 3 (for Series E mobile pedestal variants).
  • Uniform surface load (stated): 500 kg.
