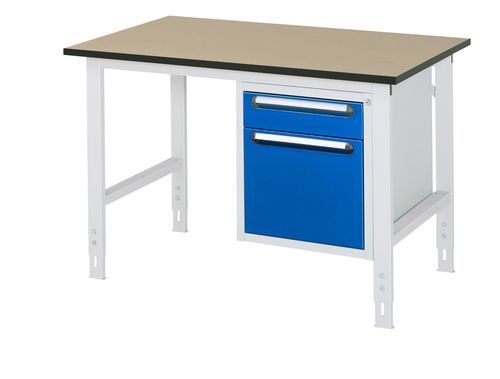

Wooden workbench 06-625F80-12-KM05.11

for workshopswith drawer2-drawer

Description

• MDF worktop, 22 mm thickness. Homogeneous fibreboard structure with fine, smooth and wear‑resistant surface. All‑around black ABS edging.
• System underframe dimensions: W1150 × D660 × H740–1060 mm.
• Four‑leg frame with two pairs of profile steel tube legs (60 × 30 × 2 mm) including depth bracing (top and bottom). Leg feet include end element with height adjustment. Crossbars under the worktop (50 × 25 × 2 mm) front and rear. Rear stiffening traverses (left, centre, right) connect leg pairs to rear crossbar. Frame prepared for retrofit of a castor set.
• Note: This base table (complete model) can be extended with an add‑on table of the same depth.

Configuration

• Undercarriage container Series E, external dimensions W480 × D600 × H545 mm.
• 2 × drawers: 1 × H120 mm, 1 × H360 mm.
• H360 mm drawer includes suspension filing insert.
• Drawer internal size: W390 × D560 mm, load capacity 35 kg, 90% extension. Drawer well closed on all sides to accept drawer divider sets.
• Continuous, partially integrated handle strip (including label strip).
• Central lock (pin cylinder lock with 2 keys).

Technical data
Type of extension: Partial extension 90%
Width: 1250 mm
Static surface load: 500 kg
Number of drawers: 2
Depth: 800 mm
Height from: 760 mm
Height to: 1080 mm
Worktop material: MDF worktop
Top thickness: 22 mm

Reference / technical specifications

• Item number: 06-625F80-12-KM05.11
• EAN: 4040376987150
• Standard width (selected complete model): 1250 mm (other widths available: 750 / 1000 / 1250 / 1500 / 2000 mm)
• Standard depth (selected): 800 mm (alternative 1000 mm available)
• Worktop material: MDF, 22 mm
• Height adjustment range of undercarriage: approx. 760 mm to 1080 mm
• Load capacity / surface load: max. 500 kg (static)
• Frame: profile steel tube with depth bracing and crossbars, prepared for retrofit of castor set
• Drawers: 90% extension, internal W390 × D560 mm, load capacity 35 kg
