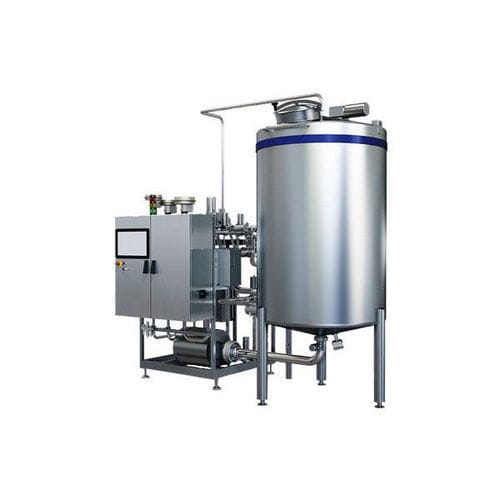

Turbine mixer ZLVM series

bottom-entrybatchsolid/liquid

Overview:
The ZLVM vacuum mixer series is a customizable, high-speed mixing system designed for efficient processing of high‑viscosity products. The unit integrates a bottom-mounted turbo mixing element and can be equipped with an optional dynamic stator to improve homogenization and emulsification under vacuum.

Applications:

• Mixing and homogenizing of liquids, liquid–solid and liquid–powder systems.
• Emulsification, blending, heating, pasteurization and cooling processes.
• Deaeration, flash cooling/evaporation and powder handling for dairy, prepared foods, cosmetics, pharmaceuticals and related industries.

Equipment characteristics:

• Customer-configurable design to meet process requirements and line integration.
• Turbo bottom-mounted high-efficiency mixing unit for superior circulation in tanks.
• Optional dynamic stator to enhance shear and product texture control.
• Available options include: direct steam injection heating; steam or hot-water heating via jacket; indirect cooling via jacket; vacuum for deaeration, powder transport or flash cooling; powder and liquid handling equipment; bin elevators and wagons; multiple agitator types.
• Designed for multi-operation workflows: homogenizing, emulsifying, blending, heating, pasteurization, cooling and powder handling.

Technical specifications (key models):

• ZLVM-100 — Turbo Motor: 11 kW; Agitator Motor: 0.9 kW; Vacuum Pump: 0.75 kW; Size (mm) A:1250 | A1:400 | B:1600 | C:582 | D:314*424 | E:390; Weight: 470 kg
• ZLVM-250 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; Size (mm) A:1530 | A1:500 | B:1800 | C:756 | D:314*424 | E:390; Weight: 710 kg
• ZLVM-500 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; Size (mm) A:1680 | A1:600 | B:2210 | C:1100 | D:314*424 | E:390; Weight: 865 kg
• ZLVM-1000 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; Size (mm) A:2205 | A1:1000 | B:2485 | C:1250 | D:314*424 | E:445; Weight: 1565 kg
• ZLVM-1500 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; Size (mm) A:2550 | A1:1250 | B:2560 | C:1300 | D:314*424 | E:445; Weight: 1725 kg
• ZLVM-2500 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; Size (mm) A:2935 | A1:1500 | B:2710 | C:1600 | D:314*424 | E:445; Weight: 2115 kg
• ZLVM-5000 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; Size (mm) A:3440 | A1:1800 | B:3210 | C:2000 | D:314*424 | E:445; Weight: 3060 kg
• ZLVM-7500 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; Size (mm) A:3740 | A1:2000 | B:3460 | C:2300 | D:314*424 | E:580; Weight: 3470 kg
• ZLVM-10000 — Turbo Motor: -; Agitator Motor: -; Vacuum Pump: -; Size (mm) A:4130 | A1:2300 | B:3660 | C:2500 | D:314*424 | E:580; Weight: 4900 kg
• ZLVM-15000 — Turbo Motor: 200 kW; Agitator Motor: 9.2 kW; Vacuum Pump: 11 kW; Size (mm) A:4565 | A1:2500 | B:4110 | C:3000 | D:314*424 | E:615; Weight: 5275 kg
