Water cleaning system

automaticfor the chemical industryfor the food industry

Overview:

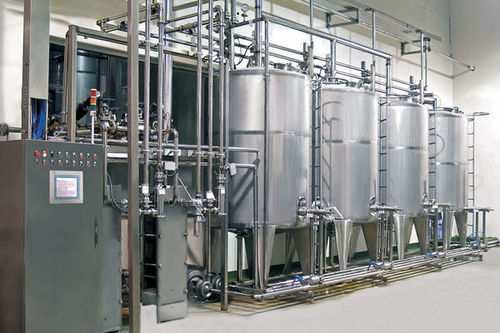

The fully automatic CIP cleaning system operates on closed-circuit recycling to perform on-line cleaning of tanks, pipelines, pumps, valves and the production line without disconnection of pipes or equipment. The system is PLC program controlled with a color touch screen that displays process flow and control parameters. Configurable parameters include cleaning liquid temperature, acid/alkali pH, cleaning time, cleaning sequence and reflux pH values.

Application:
Designed for on-line cleaning of whole production lines or selected equipment in food, pharmaceutical and chemical industries, where hygienic, repeatable cleaning cycles are required.

Equipment characteristics:

• Automatic control of cleaning liquid flow rate.
• Automatic regulation of cleaning liquid temperature.
• Automatic liquid-level replenishment control.
• Automatic compensation of acid and alkali concentrations.
• Automatic transfer between acid, alkali and hot water cleaning processes.
• System alarm for fault and exception notification.

Technical specification:

• CIP tank volume range: 1000 L – 10000 L.
• Included tank types: alkali tank, acid tank, hot water tank, clean water tank, back water tank.
• Cleaning loop options: single loop, double loop, three loops, four loops.
• Heating options: internal coil heating, outer plate-type heating, outer tubular heating.
• Control: PLC program control with color touch screen display.
• Settable parameters: cleaning liquid temperature, acid/alkali pH, cleaning time, cleaning sequence, reflux pH values.
• Automations: flow-rate control, temperature regulation, liquid-level replenishment, concentration compensation, automatic process transfer between cleaning media, and alarm device.
