PU milk cooling tank ZLCG series

polyurethane

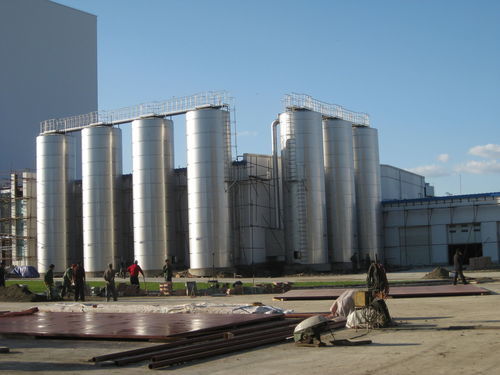

Overview: Large outdoor storage tank is equipped with cleaning system, stirrer system, lighting and viewing devices, thermometer and liquid level indicator.

Application: It is applicable for large milk collection centers or for outdoor milk storage at large dairy production plants; also used in other food and pharmaceutical factories for liquid product storage.

Equipment characteristics:

• Inner shell and outer cladding structure with PU insulation.
• Dimple jacket cooling design suitable for fresh milk storage.
• Special workshop-wall door design for convenient sampling and operation.
• Volume range: 15,000 L – 120,000 L (custom design available; for tanks ≥120T on-site manufacture is recommended due to transport constraints).
• Standard attachments: airtight side manway; side-mounted agitator; PT100 thermometer (0–100℃); two CIP cleaning balls; aseptic sample valve; air vent with insect/dirt protection; product inlet/outlet; cooling medium inlet/outlet; level sensor; ladder with safety cage and top protection fence; lighting and viewing devices.

Technical specification:
Model | External Diameter (mm) | Total Height (mm) | Insulation Thickness (mm) | Motor Power (kW) | Side Agitator Speed (rpm)
ZLCG-15 | 2200 | 6500 | 100 | 4 | 960
ZLCG-20 | 2380 | 7150 | 100 | 4 | 960
ZLCG-30 | 2700 | 7850 | 100 | 5.5 | 960
ZLCG-50 | 3200 | 9200 | 100 | 5.5 | 960
ZLCG-60 | 3400 | 9800 | 100 | 5.5 | 960
ZLCG-100 | 3620 | 12990 | 100 | 5.5×2 | 960
ZLCG-120 | 3700 | 14200 | 100 | 5.5×2 | 960

Characteristics / Technical specifications:

• Insulation: inner shell and outer cladding with PU insulation; typical thickness 100 mm.
• Cooling: dimple jacket cooling design optimized for fresh milk preservation.
• Capacity: standard range 15,000–120,000 L; custom capacities available on request.
• Agitator: side-mounted agitator(s); motor power from 4 kW up to 5.5×2 kW depending on model; typical speed ~960 rpm.
• Instrumentation & accessories: PT100 thermometer (0–100℃), liquid level indicator/level sensor, CIP cleaning balls, aseptic sample valve, airtight manway, vents with insect/dirt protection, product and cooling inlets/outlets, ladder and top protection fence, lighting and viewing ports.
