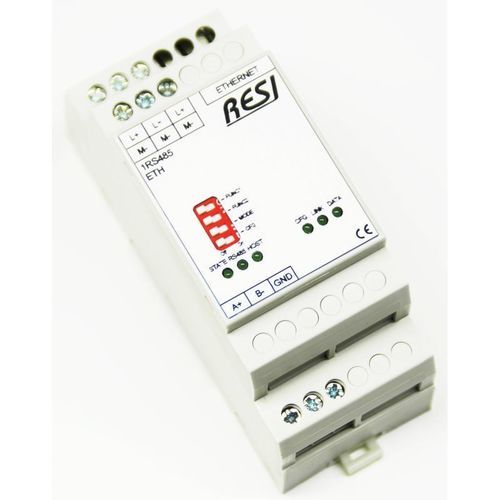

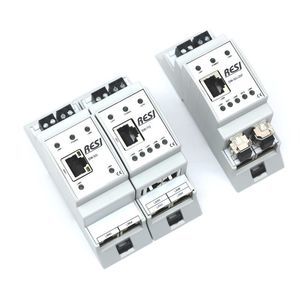

Ethernet device server RESI-1RS485 series

RS-232serialModbus TCP

Overview
Our RESI-1RS485-ETH and RESI-1RS232-ETH gateways allow integration of MODBUS/RTU slave devices or devices using an ASCII or binary protocol into an Ethernet network. The gateway exchanges data bidirectional between Ethernet and the serial line (RS232 or RS485). A special mode for internal conversion between MODBUS/TCP and MODBUS/RTU protocol can be enabled in the gateway, allowing controllers with MODBUS/TCP protocol to communicate directly with MODBUS/RTU devices.

Converters (SIO)
The RESI-1RS485-SIO and RESI-1RS232-SIO modules are used to convert between different protocols. Both modules provide on one side RS232 and RS485 interfaces. The RESI-1RS232-SIO offers a galvanic insulated RS232 interface and the RESI-1RS485-SIO offers a galvanic insulated RS485 interface.

Models / Variants

• RESI-1RS485-ETH: Ethernet to 1xRS485, MODBUS/TCP, MODBUS/RTU, ASCII, binary protocol
• RESI-1RS232-ETH: Ethernet to 1xRS232, MODBUS/TCP, MODBUS/RTU, ASCII, binary protocol
• RESI-1RS485-SIO: RS232/RS485 to 1xRS485, special protocol conversion inside
• RESI-1RS232-SIO: RS232/RS485 to 1xRS232, special protocol conversion inside

Intended connections / Use cases

• Designed for connection to controllers and hosts such as PCs, PLCs, AutoGers, media controls, minicomputers, Raspberry Pi, Arduino or special hardware

Configuration
The gateways provide a web page to define Ethernet parameters. Serial parameters are set via MODBUS registers using a special setup method; consult the product manual for full configuration details.

Available documentation (names)

• RESI-CATALOG-GATEWAYS-EN-GW-89-RESI-1RS485-ETH.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-90-RESI-1RS232-ETH.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-91-RESI-1RS485-SIO.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-92-RESI-1RS232-SIO.pdf
• RESI-M-1RS2321RS485-ETH-EN.pdf (manual)
• RESI-M-1RS2321RS485-ETH-DE.pdf (manual)
• RESI-PA-RESI-1RS485-ETH-DE-EN.pdf (product attachment)
• RESI-PA-RESI-1RS232-ETH-DE-EN.pdf (product attachment)
• RESI-PA-RESI-1RS485-SIO-DE-EN.pdf (product attachment)
• RESI-PA-RESI-1RS232-SIO-DE-EN.pdf (product attachment)
• RESI-DECLARATION-OF-CONFORMITY-CE-1RS232-1RS485-EN.pdf

Caractéristiques / spécifications techniques

• Reference (example variant): RESI-1RS485-ETH
• Interfaces: Ethernet + serial (RS485 or RS232); SIO variants include both RS232 and RS485 on one side with galvanic insulation on the SIO-provided interface
• Supported protocols: MODBUS/TCP, MODBUS/RTU, ASCII, binary protocol
• Internal mode: optional internal conversion between MODBUS/TCP and MODBUS/RTU
• Configuration: Web interface for Ethernet parameters; serial parameters configured via MODBUS registers with a special setup method
• Intended hosts: PCs, PLCs, AutoGers, media controls, minicomputers, Raspberry Pi, Arduino, special hardware
• Price (excl. tax) for main variant: 180 EUR
• Stock: 4 (this variant); total across all versions: 34
