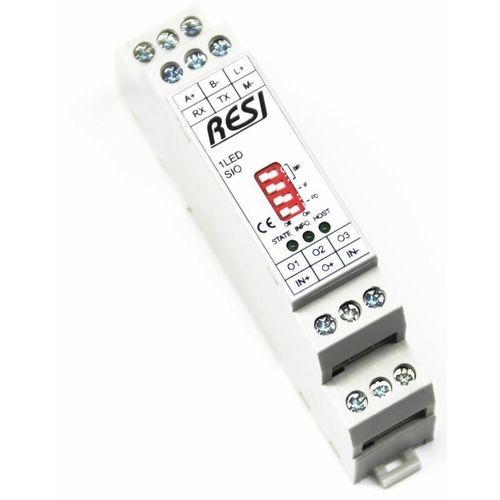

LED lighting controller RESI-xLED series

RS232EthernetUSB

Overview
LED gateways for integration of LED luminaires, spots and strips. Support for single-color, bicolor (cold white / warm white) and RGB/RGBW strips. RESI-xLED-SIO and RESI-xLED-ETH series control constant-voltage LED strips (12V DC or 24V DC) with common anode using PWM modulation.

Supported LED types

• Single-color constant-voltage LED strips (12V or 24V), common anode, PWM driven
• Bicolor LED strips (cold white / warm white)
• RGB and RGBW LED strips
• Addressable LED strips based on WS2812 or WS2805 (with RESI-2LEDWS variants)

Integration & Control
Intended for connection to PCs, PLCs, DDCs, media controllers, minicomputers, Raspberry Pi, Arduino or dedicated hardware. Integration via MODBUS protocol (RTU/TCP) or via simple ASCII text commands. Interfaces depend on variant: RS232, RS485, Ethernet or USB.

Configuration
Configure and test devices using the RESIConfigurator software.

Available device variants (examples)

• RESI-1LED-SIO: 3x PWM outputs for constant-voltage LED strips, MODBUS/RTU + ASCII, 1xRS232 + 1xRS485
• RESI-1LED-ETH: 3x PWM outputs, MODBUS/TCP + ASCII, 1xEthernet
• RESI-4LED-SIO: 12x PWM outputs, MODBUS/RTU + ASCII, 1xRS485
• RESI-4LED-ETH: 12x PWM outputs, MODBUS/TCP + ASCII, 1xEthernet
• RESI-2LEDWS-SIO / RESI-2LEDWS-ETH / RESI-2LEDWS-USB: 2-channel controllers for up to 1024 WS2805 or WS2812 addressable LEDs, via MODBUS/RTU, MODBUS/TCP or USB respectively

Notes

• PWM modulation for constant-voltage LED strips with common anode.
• Supports MODBUS (RTU/TCP) and a simple ASCII command set for automation integration.

Technical specifications

• Product family: RESI-xLED
• Example model shown on page: RESI-4LED-SIO
• Control outputs: variants with 3xPWM or 12xPWM outputs; 2-channel variants for addressable LEDs
• Supported supply for LED strips: 12V DC or 24V DC (constant voltage)
• Addressable LED support: WS2812, WS2805 (up to 1024 LEDs for RESI-2LEDWS variants)
• Communication interfaces: RS232, RS485, Ethernet, USB (depending on variant)
• Protocols: MODBUS (RTU/TCP) and ASCII command set
• Configuration software: RESIConfigurator
• Reference (example variant shown): RESI-4LED-SIO
• Quantity on page (stock shown): 10 (variant), 69 (all versions)
• Price (tax excl., page): 211.20 EUR
