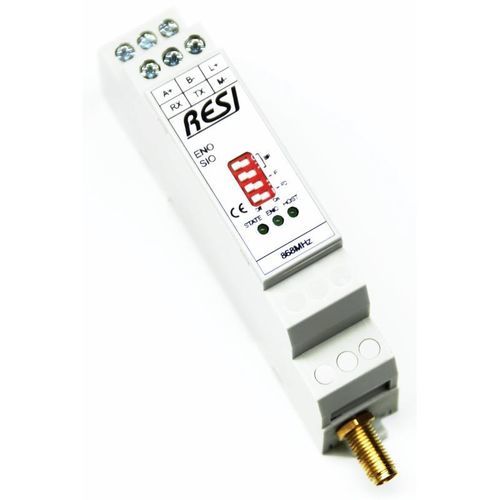

Industrial gateway RESI-ENO series

IoTtelemetrycommunication

Product overview
ENOCEAN gateways of the RESI-ENO series enable integration of ENOCEAN wireless sensors into industrial and building automation solutions. Devices support the European ENOCEAN frequency band (868 MHz) and provide protocol bridging to common control systems.

Supported standards / Frequency
ENOCEAN (868 MHz)

Communication & Protocols

• MODBUS (RTU) and ASCII command mode
• EnOcean Serial Protocol 3® (ESP3) for serial gateway variants
• Physical interfaces: RS232, RS485, Ethernet (depending on variant)

Variants (available product options)

• RESI-ENO-SIO: ENOCEAN gateway, MODBUS/RTU + ASCII, 1xRS232 + 1xRS485
• RESI-ENO-ETH: ENOCEAN gateway, MODBUS/RTU + ASCII, 1xEthernet
• RESI-ENO-GW: ENOCEAN gateway, EnOcean Serial Protocol 3 (ESP3), 1xRS232 + 1xRS485
• RESI-ENOGW-ETH: ENOCEAN gateway, EnOcean Serial Protocol 3 (ESP3), 1xEthernet
• Accessories: antenna options (RESI-ENOCEAN-ANT, RESI-ENOCEAN-ANT2)

Compatible controllers & platforms

• PCs, PLCs and industrial automation controllers
• Media controllers and single-board computers
• Raspberry Pi, Arduino and similar hardware for prototyping or integration

Configuration
Configuration and testing are performed with the free RESIConfigurator software. KNX-EnOcean mapping for on-wall KNX devices is provided via dedicated RESI software (not programmable with ETS).

Documents & Catalogs (filenames available on product page)

• RESI-CATALOG-GATEWAYS-EN-GW-70-ENOCEAN Overview.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-71-ENOCEAN Overview 2.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-72-ENOCEAN Overview 3.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-73-RESI-ENO-SIO.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-74-RESI-ENO-ETH.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-75-RESI-ENO-GW.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-76-RESI-ENOGW-ETH.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-77-RESI-RG-ENO2-K.pdf
• RESI-M-xxx-SIO-ETH-EN.pdf
• RESI-PA-RESI-ENO-SIO-DE-EN.pdf
• RESI-PA-RESI-ENO-ETH-DE-EN.pdf
• RESI-PA-RESI-ENO-GW-DE-EN.pdf
• RESI-PA-RESI-ENOGW-ETH-DE-EN.pdf
• RESI-PA-RESI-RG-ENO2-K-DE-EN.pdf
• RESI-DECLARATION-OF-CONFORMITY-CE-ENOCEAN-EN.pdf

Additional technical information
Product attachments include MODBUS mapping tables, ASCII command lists and certificates. Technical documents and firmware information are available on the product page for each variant.

Characteristics / technical specifications

• Reference (default shown): RESI-ENO-ETH
• Family / series: RESI-ENO series
• Radio: ENOCEAN (868 MHz)
• Protocols: MODBUS (RTU) + ASCII; ESP3 for serial variants
• Interfaces: RS232, RS485, Ethernet (variant-dependent)
• Configuration software: RESIConfigurator (free)
• Accessories: antennas (including magnetic base with 5 m cable option)
• Included documentation: catalogs, manuals, product attachments, declaration of conformity
