Unmanaged switch RESI-SW series
5 portsfast ethernetgigabit Ethernet

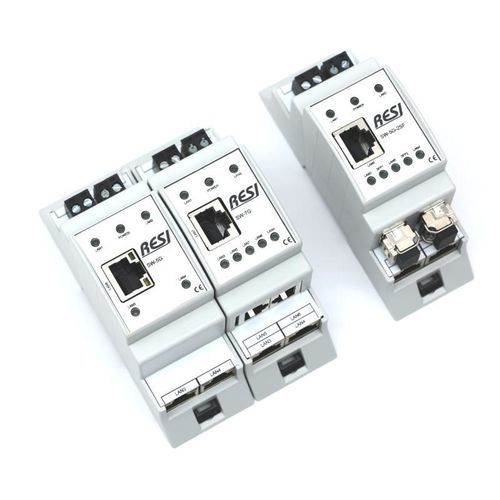

Unmanaged switch - RESI-SW series - RESI - 5 ports / fast ethernet / gigabit Ethernet
Unmanaged switch - RESI-SW series - RESI - 5 ports / fast ethernet / gigabit Ethernet
Unmanaged switch - RESI-SW series - RESI - 5 ports / fast ethernet / gigabit Ethernet - image - 2
Unmanaged switch - RESI-SW series - RESI - 5 ports / fast ethernet / gigabit Ethernet - image - 3
Unmanaged switch - RESI-SW series - RESI - 5 ports / fast ethernet / gigabit Ethernet - image - 4
Unmanaged switch - RESI-SW series - RESI - 5 ports / fast ethernet / gigabit Ethernet - image - 5
Unmanaged switch - RESI-SW series - RESI - 5 ports / fast ethernet / gigabit Ethernet - image - 6
Unmanaged switch - RESI-SW series - RESI - 5 ports / fast ethernet / gigabit Ethernet - image - 7
Add to favorites
Compare this product

Characteristics

Type
unmanaged
Number of ports
5 ports
Network
fast ethernet, gigabit Ethernet
Mounting
panel-mounted, for integration
Other characteristics
SFP, RJ45
Applications
industrial, for industrial automation

Description

Overview
Extremely compact unmanaged Ethernet switches designed for direct installation in switchboard cabinets with a 45 mm cutout. Devices occupy 4 MU and accept wide-range DC input for industrial network distribution.

Available versions
  • RESI-SW-5G: Unmanaged switch with five RJ45 copper ports; all ports support 10/100/1000 Mbit/s.
  • RESI-SW-7G: Unmanaged switch with seven RJ45 copper ports; five ports support 10/100/1000 Mbit/s, two ports support 1000 Mbit/s only.
  • RESI-SW-5G-2SF: Unmanaged switch with five RJ45 copper ports and two SFP slots (for fiber or SFP-to-RJ45 modules); RJ45 ports: 10/100/1000 Mbit/s, SFP slots: 1000 Mbit/s.
  • RESI-SW-5M: 100 Mbit version — five RJ45 copper ports, all ports support 10/100 Mbit/s.


Product variants / options (as presented)
  • RESI-SW-5G: Unmanaged switch, 12–48 V DC, 5x RJ45 (10/100/1000 Mbit/s)
  • RESI-SW-7G: Unmanaged switch, 12–48 V DC, 5x RJ45 (10/100/1000 Mbit/s) + 2x RJ45 (1000 Mbit/s)
  • RESI-SW-5G-2SF: Unmanaged switch, 12–48 V DC, 5x RJ45 (10/100/1000 Mbit/s) + 2x SFP slots (1000 Mbit/s)


Documentation (available on the product page)
  • RESI-PA-RESI-SW-5G-DE-EN.pdf (product manual)
  • RESI-PA-RESI-SW-5G-2SF-DE-EN.pdf (product manual)
  • RESI-PA-RESI-SW-7G-DE-EN.pdf (product manual)
  • RESI-Products-SWITCHES-EN.pdf (catalog / marketing)
  • RESI-DECLARATION-OF-CONFORMITY-CE-SWITCHES-EN.pdf (declarations / certificates)


Technical specifications & key information
  • Product type: Unmanaged Ethernet switch for cabinet integration (very small form factor).
  • Mounting: Designed for switchboard cabinets with 45 mm cutout; occupies 4 MU.
  • Power supply: Wide-range DC input 12–48 V DC.
  • Port options: 5x RJ45 (Gigabit on G versions); 7x RJ45 variant; 2x SFP slots on 5G-2SF variant.
  • Speeds: Support for 10/100 Mbit/s and 10/100/1000 Mbit/s depending on variant; some dedicated ports or SFP slots operate at 1000 Mbit/s only.
  • Use case: Compact network distribution inside control cabinets for industrial and automation applications.
