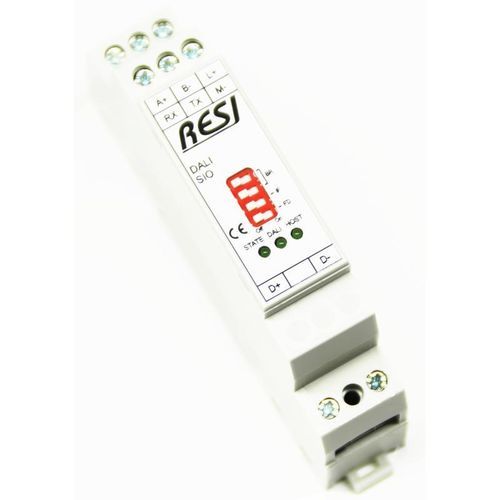

Communication gateway RESI-DALI series

TCPEthernetRS232

Overview
Our DALI gateways provide a technical solution for controlling DALI 1.0 and DALI 2.0 lighting systems. A dedicated DALI power supply completes the product range. The gateways support DALI profiles DT6 (tunable/two-color LED control) and DT8 (RGB / RGBW control). DALI 2.0 sensors and command devices can be processed by the gateways.

Supported controllers & integration
The gateways are designed to connect to a wide range of controllers:

• PCs
• PLCs
• DDCs
• Media controllers
• Single-board computers
• Raspberry Pi
• Arduino
• Custom hardware

Integration is possible via MODBUS (RTU or TCP) or using a simple ASCII command set.

How to configure
Use the free RESIConfigurator software to parameterize and test the DALI gateways: initialize new DALI luminaires, test the complete DALI lighting network and configure individual DALI parameters.

Product variants

• RESI-DALI-SIO: DALI 1.0+2.0 master, MODBUS/RTU + ASCII, 1x RS232 + 1x RS485
• RESI-DALI-ETH: DALI 1.0+2.0 master, MODBUS/TCP + ASCII, 1x Ethernet
• RESI-DALI-PS: DALI 1.0+2.0 power supply

Catalogs & Overviews (selection)

• Catalogs and overviews for our gateway products
• RESI-Products-DALI-1.0-2.0-EN.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-26-DALI Overview.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-27-DALI Overview 2.pdf

Manuals / Product attachments (selection)

• RESI-M-xxx-SIO-ETH-EN.pdf (manual)
• RESI-M-DALI-EMERGENCYLAMPS-EN.pdf
• RESI-PA-RESI-DALI-SIO-DE-EN.pdf
• RESI-PA-RESI-DALI-ETH-DE-EN.pdf
• RESI-PA-RESI-DALI-PS-DE-EN.pdf
• RESI-L-DALI-SIO,ETH-MODBUS+ASCII-EN.pdf (MODBUS/ASCII command list)
• RESI-DECLARATION-OF-CONFORMITY-CE-DALI-EN.pdf

Additional technical documents (selection)

• RESI-CATALOG-GATEWAYS-EN-GW-28-RESI-DALI-SIO.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-29-RESI-DALI-ETH.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-30-RESI-DALI-PS.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-34-DALI MODBUSConfigurator.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-35-DALI cable topology.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-36-DALI Q&A.pdf

Technical specifications

• Supported DALI versions: DALI 1.0 and DALI 2.0
• DALI profiles supported: DT6, DT8
• DT6: two-color/tunable white LED control (e.g. cold white–warm white)
• DT8: RGB / RGBW control for spots and LED strips
• Integration protocols: MODBUS (RTU or TCP) and ASCII command set
• Configuration tool: RESIConfigurator (free software)
• Available references / MPNs: RESI-DALI-SIO, RESI-DALI-ETH, RESI-DALI-PS
• Typical interfaces by variant: RS232 + RS485 (SIO), 1x Ethernet (ETH)
• Example price shown: price excl. tax 220 (currency indicated separately)
• Weight (product data): 0.300000 kg
