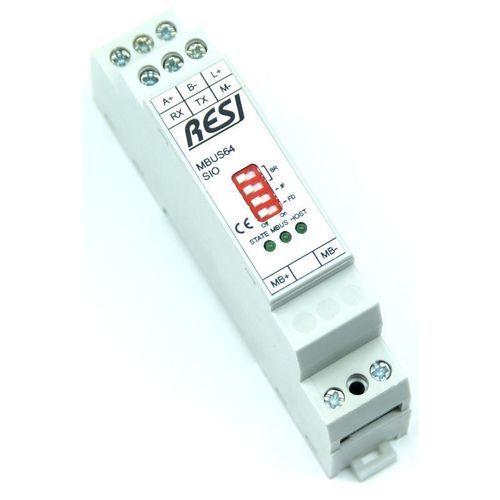

Communication gateway RESI-MBUSx series

industrialtelemetryEthernet

Overview
FAST GROWING MARKET. SMART METER INTEGRATION. BE A PART OF IT. USE OUR MBUS GATEWAYS.
RESI has more than 30 years of experience in in-house development and production in Europe. The company provides technical support, internal repair capability and ecological packaging to reduce environmental impact.

For what?
Designed for read-out of smart meters (electricity, water, heat, cold, gas). MBUS is an international standard supported by most meter manufacturers. Measured values can be forwarded via the widely used MODBUS protocol or via MBUS protocol depending on the gateway configuration.

Which variant?

• RESI-MBUSx-SIO (serial: RS232 / RS485)
• RESI-MBUSx-ETH (Ethernet)
• RESI-MBUSx-LVL (MBUS level converter)
• RESI-MBUSxLVL-ETH (LVL with Ethernet)
• RESI-MBUSxR2-SIO / RESI-MBUSxR2-ETH (for meters with RS232 interface)
• RESI-MBUSxR4-SIO / RESI-MBUSxR4-ETH (for meters with RS485 interface)

Product options (available on this product page)

• Interface MBUS gateway: 1xRS232; 1xRS232 + 1xRS485; 1xEthernet (default: 1xRS232 + 1xRS485)
• Number of meters: 2, 8, 24, 48, 64 (default: 24)
• Protocol: MODBUS (default) or MBUS

How to configure?
Use the free RESIConfigurator software to parameterize and test the gateways.

Available documentation (selection)

• RESI-CATALOG-GATEWAYS-EN-GW-7-RESI-MBUSx-SIO.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-8-RESI-MBUSx-ETH.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-11-RESI-MBUSx-LVL.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-12-RESI-MBUSxLVL-ETH.pdf
• RESI-FLYER-MBUS-2020-EN10.pdf
• RESI-M-xxx-SIO-ETH-EN.pdf
• RESI-M-MBUSxLVL-ETH-EN.pdf
• RESI-PA-RESI-MBUS24-SIO-DE-EN.pdf
• RESI-PA-RESI-MBUS24-ETH-DE-EN.pdf
• RESI-PA-RESI-MBUS24-LVL-DE-EN.pdf
• RESI-QA-MBUS-EN10.pdf
• RESI-DECLARATION-OF-CONFORMITY-CE-MBUSx-EN.pdf

Notes
The product family supports read-out of electricity, water, heat, cold and gas meters. Multiple interface, meter-count and protocol options are offered to match SCADA systems, PLCs or controllers.

Technical specifications

• Brand: RESI
• Series: RESI-MBUSx
• Reference example: RESI-MBUS24-SIO
• Interfaces (examples): 1xRS232; 1xRS232 + 1xRS485; 1xEthernet
• Number of meters supported (options): 2, 8, 24, 48, 64
• Supported protocols: MODBUS (default), MBUS
• Main use: read-out of smart meters (electricity, water, heat, cold, gas)
• Manufacturing: produced in Europe (long product life and internal repair according to manufacturer)
• Configuration tool: RESIConfigurator (free software)
• Price excl. VAT (product / selected attribute): 201.80 EUR
• Currency: EUR
• Unit of sale: piece
• Quantity available on page: 10 (total quantity all versions: 142)
• Product ID: 5
• Images available: 13
