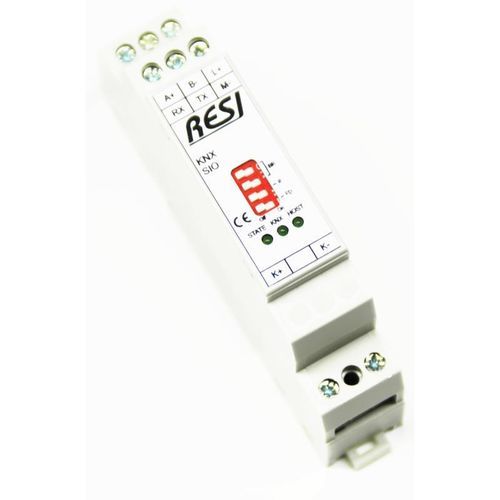

Communication gateway RESI-KNX series

RS232EthernetModbus TCP

Overview
RESI-KNX series gateways provide bidirectional integration between a KNX installation and external controllers or devices. Variants support MODBUS (RTU/TCP) or simple ASCII command interfaces and offer physical interfaces such as RS232, RS485 and Ethernet to adapt to diverse automation environments.

Power supply
The RESI-KNX-PS device supplies a KNX bus with a maximum of 160 mA and is intended for small KNX installations.

Functionality

• Bidirectional data exchange between KNX bus and external controllers or systems.
• Integration using MODBUS protocols (MODBUS TCP or MODBUS RTU) or via ASCII text commands.
• Support for MODBUS slaves and ASCII-capable devices via RS232, RS485 or Ethernet (MODBUS/TCP).

Compatible controllers / hosts

• PCs
• PLCs
• Automation controllers
• Media control systems
• Single-board computers (e.g. Raspberry Pi)
• Arduino and similar boards
• Specialized hardware platforms

Available product variants

• RESI-KNX-SIO: KNX gateway, MODBUS/RTU + ASCII, 1x RS232 + 1x RS485
• RESI-KNX-ETH: KNX gateway, MODBUS/TCP + ASCII, 1x Ethernet
• RESI-KNX-GW: KNX gateway, ASCII, 1x RS232 + 1x RS485
• RESI-KNXGW-ETH: KNX gateway, ASCII, 1x Ethernet
• RESI-KNX-MBMASTER: KNX gateway, MODBUS/RTU master, 1x RS232 + 1x RS485
• RESI-KNX-PS: KNX power supply (max. 160 mA)

How to configure
Configuration and testing are performed with the free RESIConfigurator software.

Available documents & manuals (selection)

• RESI-CATALOG-GATEWAYS-EN-GW-59-RESI-KNX-SIO.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-60-RESI-KNX-ETH.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-61-RESI-KNX-PS.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-62-RESI-KNX-GW.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-63-RESI-KNXGW-ETH.pdf
• RESI-CATALOG-GATEWAYS-EN-GW-64-RESI-KNX-MBMASTER.pdf
• RESI-M-xxx-SIO-ETH-EN.pdf (manual)
• RESI-M-KNX-GW-KNXGW-ETH-EN.pdf (manual)
• RESI-M-KNX-MBMASTER-EN.pdf (manual)
• RESI-PA-RESI-KNX-SIO-DE-EN.pdf (product attachment)
• RESI-PA-RESI-KNX-ETH-DE-EN.pdf (product attachment)
• RESI-PA-RESI-KNX-PS-DE-EN.pdf (product attachment)
• RESI-PA-RESI-KNX-GW-DE-EN.pdf (product attachment)
• RESI-PA-RESI-KNX-MBMASTER-DE-EN.pdf (product attachment)
• RESI-L-KNX-SIO,ETH-MODBUS+ASCII-EN.pdf (MODBUS mapping + ASCII command list)

Specifications / technical characteristics

• Series: RESI-KNX
• Reference example: RESI-KNX-ETH
• Interfaces (by variant): RS232, RS485, Ethernet
• Supported protocols: KNX, MODBUS (RTU/TCP), ASCII command interface
• Power supply for KNX bus (RESI-KNX-PS): max. 160 mA
• Typical application: bidirectional gateway between KNX and MODBUS or ASCII-capable controllers and media systems
• Configuration tool: RESIConfigurator software
• Price (excl. tax, example attribute): 228.40 EUR
• Files: multiple images and product attachments available
