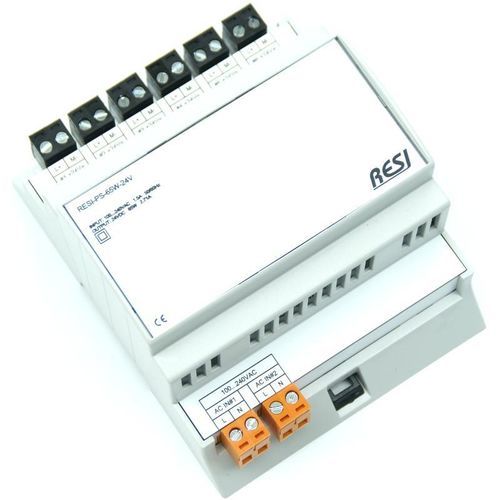

Line-interactive UPS RESI-PS-65W

DC24 V12 V

Overview
RESI supplies power supplies with a specific feature: the units provide more output terminals than usual, avoiding additional distribution terminals inside a control cabinet.

Available models / variants

• RESI-PS-65W-24V: Input 110–230 Vac, Output 24 V DC, Power 65 W, seven output terminals
• RESI-PS-65W-12V: Input 110–230 Vac, Output 12 V DC, Power 65 W, seven output terminals
• RESI-PS-65W-5V: Input 110–230 Vac, Output 5 V DC, Power 65 W, seven output terminals
• RESI-PS-T-65W-24V: Input -48 V DC (telecommunications), Output 24 V DC, Power 65 W, seven output terminals
• RESI-DC-UPS-60W-24V: Uninterruptible power supply with Input 12–48 V DC, internal battery, Output 24 V DC, Power 60 W, seven output terminals

UPS-variant functions (RESI-DC-UPS-60W-24V)

• Internal battery for backup
• Can sustain 60 W for approximately 30 minutes
• RS485 interface with MODBUS/RTU and ASCII text commands for integration into control systems

Documents & additional information
Datasheets, manuals and certificates (e.g. user guides and MODBUS mapping) are available for each variant.

Characteristics / technical specifications

• Manufacturer / Brand: RESI
• Item no. (example / default reference): RESI-PS-65W-24V
• Variants: RESI-PS-65W-24V, RESI-PS-65W-12V, RESI-PS-65W-5V, RESI-PS-T-65W-24V, RESI-DC-UPS-60W-24V
• Input voltage (PS-65W variants): 110–230 Vac
• Output voltages (depending on variant): 24 V DC / 12 V DC / 5 V DC
• Power (PS-65W variants): 65 W
• Input voltage (RESI-PS-T-65W-24V): -48 V DC (telecommunications)
• RESI-DC-UPS-60W-24V: Input 12–48 V DC, Output 24 V DC, Power 60 W, internal battery, backup time approx. 30 minutes at 60 W
• Output terminals: seven output terminals (for all listed variants)
• Interfaces (DC-UPS): RS485 with MODBUS/RTU and ASCII text commands
• Price (excl. taxes): 60.90 (price refers to the selected product variant)
• Availability: Product variants selectable on the page (multiple variants available)
