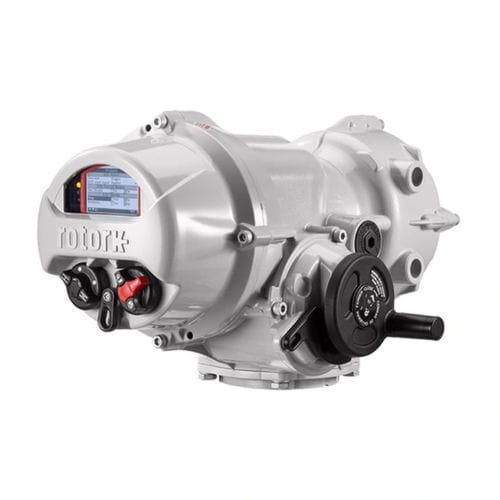

Modulating valve actuator IQT3M Pro

electricpart-turnthree-phase

IQT3M Pro 1-phase, 3-phase and DC electric modulating versions of the IQT Pro intelligent part-turn electric actuator are designed for modulating duty up to 1,800 starts per hour (S4 / Class C). They feature fast-response remote control circuits for rapid control and benefit from all the features of the IQT3 Pro actuator. Features • IQT3M Pro are modulating versions of the IQT3 Pro actuator, benefitting from design features and industry-leading reliability of the intelligent IQ3 Pro range • Designed specifically for part-turn modulating duty and suitable for operation in hazardous environments • IQT3M Pro provides reliable, accurate and high resolution modulating valve control • Solid-state motor switching for fast motor control and increased reliability • Fast response remote control circuits for rapid response to control signals • Non-intrusive set-up • Clear user-friendly controls and indication • Electrical supply options: 1-phase, 3-phase and Direct Current (DC) • Watertight and explosionproof to international standards • Water ingress protection, not reliant on terminal cover or cable gland sealing – double-sealed to IP66/68 (7 m for 72 hours) • The IQT3 Pro range builds upon the industry-leading IQT3 with the addition of a ‘connected platform’, enabling the development of new features to drive digitalisation and future-proofing of electric actuation
