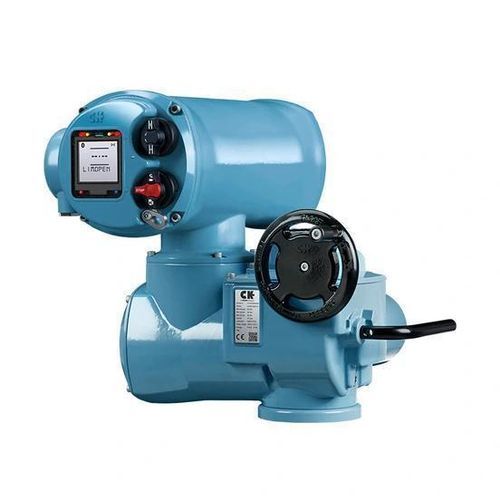

Electric valve actuator CKC

multi-turnIP68adjustable

Overview
The CKC isolating-duty electric actuator is a modular actuator engineered for infrequently operated on/off valve applications. It incorporates the Centronik intelligent control module, which may be mounted integral to the actuator or remotely up to 100 m to support installation flexibility and harsh environments.

Features

• CKC isolating-duty actuators available in Class A and B with Centronik intelligent control module
• Centronik module close-coupled or remotely mounted up to 100 m from the actuator
• Microprocessor-based controls for advanced functional applications and fieldbus integration
• Remote-mount option for Centronik module to facilitate use in harsh environments or confined spaces
• Non-intrusive configuration via local control knobs, infrared or optional Bluetooth wireless communication
• Integral intelligent controls for integration with site control systems
• Multilingual user interface and fully configurable LCD display
• Optional analogue control input and Current Position Transmitter (CPT) 0-20 mA and 4-20 mA
• Optional Current Torque Transmitter (CTT) 0-20 mA and 4-20 mA (with Digital Switch Mechanism only)
• Continuous valve position monitoring with DSM even during power loss
• Double-sealed enclosure rated to IP68
• Plug-and-socket connections for fast, efficient maintenance
• Torque measurement and independently adjustable torque limiting for both open and close operations
• Network bus connectivity; datalogging and analysis supported via Insight 2 software

Technical specifications

• Product family / series: CK Range (CKC)
• Control module: Centronik intelligent control (integral or remotely mounted up to 100 m)
• Operation: Isolating duty for on/off valve types (infrequent operation); available Class A and B
• Control: Microprocessor-based; fieldbus integration capable; network bus connectivity
• User interface: Multilingual, fully configurable LCD; non-intrusive local settings (knobs/infrared) and optional Bluetooth
• Analogues / transmitters: Optional analogue control input; CPT (0-20 / 4-20 mA); optional CTT (0-20 / 4-20 mA) with DSM
• Position monitoring: Continuous valve position monitoring with DSM, including during power loss
• Enclosure: Double-sealed, rated to IP68
• Maintenance: Plug-and-socket connections for rapid maintenance
• Torque: Torque measurement and independently adjustable torque limiting for open and close
• Data: Datalogging supported; Insight 2 software compatible
