Centrifugal pump H series

waterhydraulic motorself-priming

Description

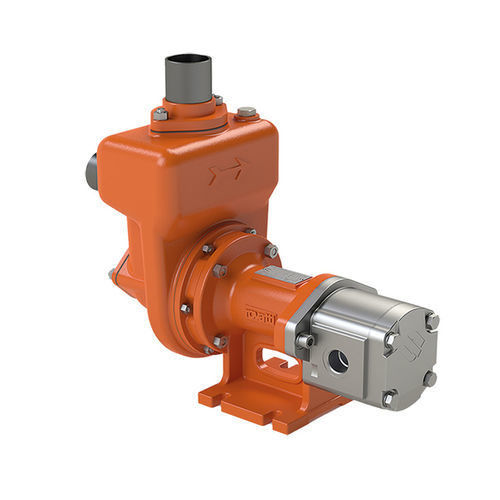

Cast-iron self-priming centrifugal pumps designed for coupling to hydraulic motors via flanged connections. Suitable for continuous and intermittent operation in fluid transfer, spraying and washdown equipment. Available in three series offering different hydraulic performances.

Range
Orange line

Applications

• Spraying systems
• Liquid transfer
• Washdown systems
• Dewatering

Performance table
Series | CAPACITY UP TO | HEAD UP TO | POWER UP TO
H0-50A | 27 m3/h | 20 m | 1.4 kW
H2-60A | 36 m3/h | 34 m | 3.3 kW
H2-90A | 72 m3/h | 36 m | 6.6 kW

Technical specifications

• Type: Self-priming centrifugal pump
• Material: Cast iron construction
• Connection: Flanged coupling for hydraulic motors for quick, secure installation
• Available series/models: H0-50A, H2-60A, H2-90A
• Maximum capacities: up to 72 m3/h (depending on series)
• Maximum head: up to 36 m (depending on series)
• Maximum power: up to 6.6 kW (depending on series)
• Typical applications: spraying systems, liquid transfer, washdown systems, dewatering
