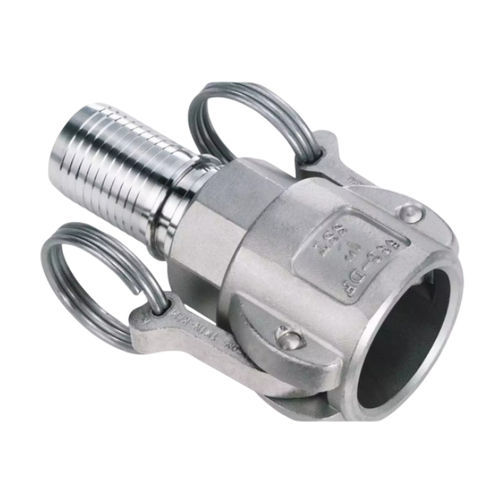

Round tube connector Versilon®stainless steel
Add to favorites
Compare this product
Characteristics
- Structure
- round
- Material
- stainless steel
- Diameter
Min.: 22.1 mm
(0.87 in)Max.: 34.8 mm
(1.37 in)
Description
Product Overview
Versilon® Bevel Seat Fitting, Style 20 from Saint-Gobain is a sanitary connection designed for easy threaded assembly and disassembly using an Acme nut. It is intended for hygienic and bioprocess applications where cleanability and secure threaded joints are required.
Materials
Surface Finish
Average 15 Ra or better
Specifications
Inner Diameter in (mm) | Outer Diameter in (mm) | Wall Thickness in (mm)
0.87 (22.1) | 1.8 (45.72) | 0.465 (11.81)
1.37 (34.8) | 2.38 (60.45) | 0.505 (12.83)
Characteristics
Technical specifications
Versilon® Bevel Seat Fitting, Style 20 from Saint-Gobain is a sanitary connection designed for easy threaded assembly and disassembly using an Acme nut. It is intended for hygienic and bioprocess applications where cleanability and secure threaded joints are required.
Materials
- Insert material: 316L stainless steel
- Acme nut material: 304 stainless steel
Surface Finish
Average 15 Ra or better
Specifications
Inner Diameter in (mm) | Outer Diameter in (mm) | Wall Thickness in (mm)
0.87 (22.1) | 1.8 (45.72) | 0.465 (11.81)
1.37 (34.8) | 2.38 (60.45) | 0.505 (12.83)
Characteristics
- Regulation: BPE
Technical specifications
- Materials: Insert - 316L stainless steel; Acme nut - 304 stainless steel
- Surface finish: Average 15 Ra or better
- Regulation compliance: BPE
- Typical dimensions (Inner Ø / Outer Ø / Wall thickness in mm): 22.1 / 45.72 / 11.81 and 34.8 / 60.45 / 12.83
