Quick coupler Versilon®

Product Overview

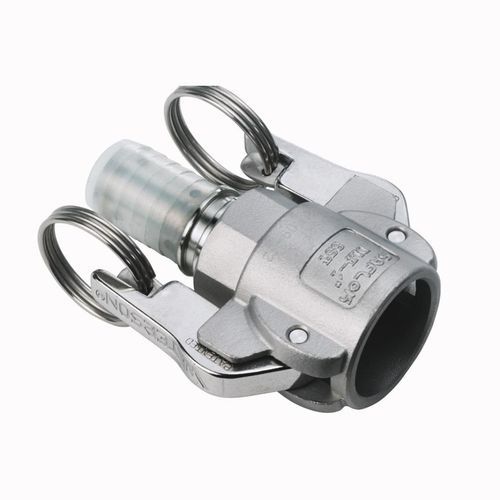

Versilon® Cam & Groove Female, Style 16T from Saint-Gobain is a D-type female cam and groove coupling in a swivel (full-swivel) design, Chemfluor® PFA encapsulated. The coupler half provides full swivel positioning for leverage to seal cam arms and includes a positive hose lock using a dog-lock groove to prevent pull-offs.

Materials

• Chemfluor® PFA encapsulation with stainless steel base
• Coupler: cast 316 stainless steel; insert: Chemfluor® PFA encapsulated with stainless steel base
• Sealing gasket: Chemfluor® PFA encapsulated
• Optional sealing over silicone with Chemfluor® PFA

Technical Data

• Chemfluor® PFA encapsulated designs convey a wide range of corrosive media without exposed elastomers
• Encapsulated sealing gasket provides a resilient seal with no exposed elastomeric material
• Full range of Chemfluor® fluoropolymer-encapsulated adapters available
• Recommended operating conditions:

  • 3/4" - 2" — 250 MAWP (psi)
  • 2-1/2" and 3" — 150 MAWP (psi)
  • 212°F with Buna N gaskets
  • 400°F with Chemfluor® PFA encapsulated gaskets
• Pressure ratings apply to fittings only; hose assembly MAWP must use the lower rating of hose and fitting at temperature
• Locking style available: replace TKS with TLKS

Inner Diameter in (mm)
0.5 (12.7)
0.66 (16.76)
1.15 (29.21)
1.58 (40.13)
2.1 (53.34)
2.5 (63.5)

Regulation / Compliance

• MIL-C-27487

Features / Technical specifications

• Brand: Versilon®
• Product type: Female cam and groove fitting, swivel style, Chemfluor® PFA encapsulated
• Coupler material: Cast 316 stainless steel with Chemfluor® PFA encapsulated insert
• Sealing gasket: Chemfluor® PFA encapsulated (resilient seal; no exposed elastomers)
• Positive hose lock incorporated (dog-lock groove) to prevent pull-offs
• Full swivel design on coupler-half for positioning and leverage to seal cam arms
• Recommended MAWP: 250 psi for 3/4"–2" sizes; 150 psi for 2-1/2" and 3" (fitting ratings only)
• Temperature limits: up to 212°F with Buna N gaskets; up to 400°F with Chemfluor® PFA encapsulated gaskets
• Available locking option: replace TKS with TLKS for locking style
• Inner diameter options (in / mm): 0.5 (12.7); 0.66 (16.76); 1.15 (29.21); 1.58 (40.13); 2.1 (53.34); 2.5 (63.5)
