Mechanical coupler Versilon®

for pipesfemale

Overview

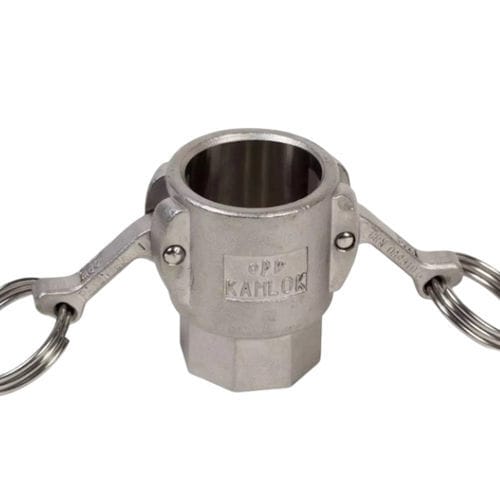

Versilon® Cam & Groove Female, Style 16 from Saint-Gobain is a female cam and groove coupling with a full-swivel "D" type coupler-half. The design provides a positive hose lock with a dog-lock groove to prevent pull-off and a full swivel on the coupler-half for easier positioning and leverage when sealing cam arms. Machined internal surfaces reduce entrapment and the larger internal diameter supports higher purity fluid transfer and improved flow rates.

Materials

• 316 stainless steel
• Coupler: cast 316 stainless steel; insert: machined 316L stainless steel
• Standard gasket material: Buna N rubber

Technical Data

• Recommended operating conditions:
• 1/2" - 2" — 250 MAWP (psi)
• 2-1/2" and 3" — 150 MAWP (psi)
• Maximum temperature: 212°F with Buna N gaskets
• Maximum temperature: 400°F with Chemfluor® PFA encapsulated gaskets
• Pressure ratings apply to fittings only; when determining maximum hose assembly MAWP, consider hose pressure ratings at temperature and use the lower of the two ratings
• Locking style available; replace SKS with SLKS in part number

Inner Diameter (inches and mm)
Inner Diameter in (mm)
0.39 (9.91)
0.63 (16)
0.85 (21.59)
1.37 (34.8)
1.75 (44.45)
2.2 (55.88)
2.76 (70.1)

Characteristics / Technical Specifications

• Product type: Female cam & groove coupling, full swivel coupler-half ("D" type)
• Positive hose lock with dog-lock groove to prevent pull-off
• Machined internal surfaces to minimize entrapment
• Higher-purity construction with larger internal diameters for improved flow
• Materials: 316 / 316L stainless steel; standard gasket Buna N (higher-temp Chemfluor® PFA encapsulated gasket option)
• MAWP: 250 psi for 1/2"–2" sizes; 150 psi for 2-1/2" and 3" sizes (fittings only)
• Maximum temperatures: 212°F (Buna N), 400°F (Chemfluor® PFA encapsulated gaskets)
• Available locking variant: replace SKS with SLKS in part numbering
