Hydraulic fitting Versilon® Butt Weld

butt-weldingstainless steelstainless

Product overview

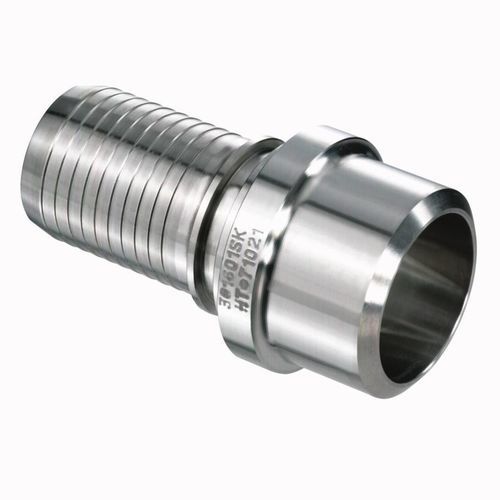

The Versilon® Butt Weld, Pipe Size, Style 01 provides a butt-weld connection option for assemblies requiring non-standard interfaces or permanent welded connections. Available standard in Schedule 40 with Schedule 10 and Schedule 80 as alternatives, it supports fabrication flexibility for hose and piping systems.

Materials

• 316 stainless steel

Technical Data

• Alternative materials or fitting styles may be welded to butt weld pipe prior to PermaSeal attachment to finished hose assemblies
• Available for welding to existing systems when proper "heat sink" methods are employed to prevent hose liner damage

Specifications — Outer Diameter (in (mm))
0.84 (21.34)
1.05 (26.67)
1.31 (33.27)
1.66 (42.16)
1.9 (48.26)
2.38 (60.45)
2.88 (73.15)
3.5 (88.9)
4.5 (114.3)

Features / Technical specifications

• Model family: Versilon® Butt Weld
• Available schedules: Schedule 40 (standard), Schedule 10 (alternative), Schedule 80 (alternative)
• Construction material: 316 stainless steel
• Welding: Compatible with alternative materials or fitting styles welded to butt weld pipe prior to PermaSeal attachment
• Installation note: Can be welded to existing systems when proper heat sink methods are applied to protect hose liner
• Outer diameter options (inches (mm)): 0.84 (21.34); 1.05 (26.67); 1.31 (33.27); 1.66 (42.16); 1.9 (48.26); 2.38 (60.45); 2.88 (73.15); 3.5 (88.9); 4.5 (114.3)
