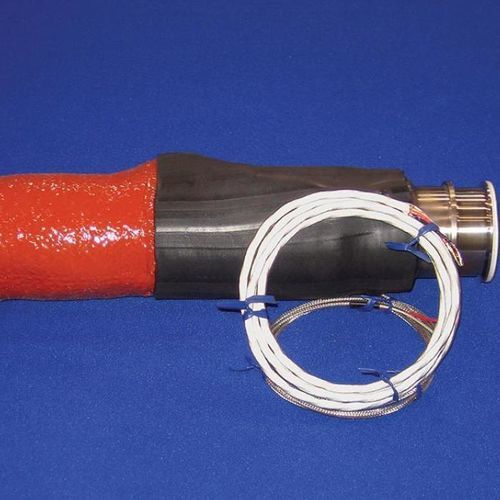

Adhesive heated hose Versilon®for hot-meltstainless steelsilicone
Add to favorites
Compare this product
Characteristics
- Fluid
- for adhesives, for hot-melt
- Other characteristics
- stainless steel, silicone, stainless steel-braided
- Applications
- for food applications, for cosmetic products, for medical applications, hot runner
- Operating temperature
121 °C
(250 °F)
Description
Product Overview
Versilon® Electrically Heated Hose from Saint-Gobain is designed to maintain the temperature of process fluids as they pass through the hose assembly to prevent solidification or to control viscosity. The system is supplied on a built-to-order basis and maintains internal temperatures regardless of hose routing, up to a maximum of +250°F (+121°C).
Construction
Features & Benefits
Typical Applications
Table: Regulations
Regulation
FDA
Specifications / Technical data
Versilon® Electrically Heated Hose from Saint-Gobain is designed to maintain the temperature of process fluids as they pass through the hose assembly to prevent solidification or to control viscosity. The system is supplied on a built-to-order basis and maintains internal temperatures regardless of hose routing, up to a maximum of +250°F (+121°C).
Construction
- Externally controlled heaters
- 115 VAC or 220 VAC power options
- J or K thermocouples available
- RTD available
- A wide variety of external protection options: silicone, FEP heat shrink, silicone/fiberglass firesleeve, stainless steel anti-kink casing, polypropylene braided, PVDF braided chafe guards
Features & Benefits
- Key Highlights
- Can be used with flexible stainless steel braided TS/WCS/TWOB Series hose assemblies
- Consult factory for availability of EHH option with other Saint-Gobain hose assemblies
- Small outside diameter to minimize bulk
- External temperature controller available
- Custom fabrication available
- Variety of end fitting options available
Typical Applications
- Hot glues
- Filling machines
- Food casings
- Food processing machines
- Food lines
- Hot waxes
- Pharmaceutical
- Cosmetics
- Outdoor applications where temperature must be maintained
Table: Regulations
Regulation
FDA
Specifications / Technical data
- Maximum internal temperature capability: up to +250°F (+121°C)
- Power: 115 VAC or 220 VAC
- Temperature sensing options: J or K thermocouples; RTD available
- Heater control: externally controlled heater systems; external temperature controller available
- External protection options: silicone jacket, FEP heat shrink, silicone/fiberglass firesleeve, stainless steel anti-kink casing, polypropylene braid, PVDF braided chafe guards
- Availability: built-to-order with virtually all hose assemblies; consult factory for specific assembly compatibility
- Compatible with Versilon TS / WCS / TWOB stainless steel braided hose series
- Suitable for maintaining viscosity and preventing solidification of conveyed materials
- Custom fabrication and a variety of end fitting options available
- Regulatory compliance example: FDA
