Mechanical coupler Versilon®

for pipesfor the chemical industryfemale

Product overview

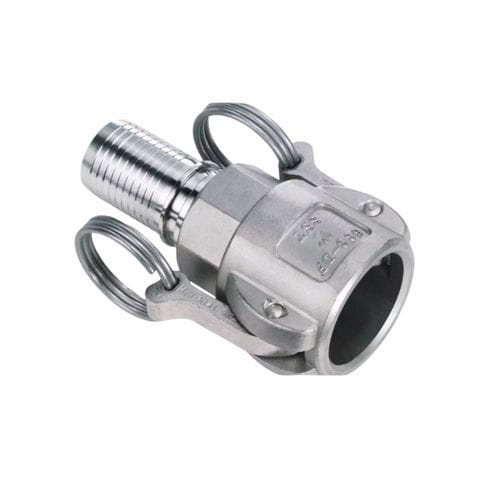

Versilon® Cam & Groove Female Coupler, Style 16FT by Saint‑Gobain is a female cam and groove, Type D swivel design enabling quick connection and disconnection. The hose inner core of Chemfluor® fluoropolymer extends through the coupler support stem and flares behind the sealing gasket to ensure no exposed joint between hose and fitting.

Materials

• 316L stainless steel construction
• Coupler body: cast 316 stainless steel; insert: machined 316L stainless steel
• Standard gaskets: Chemfluor® PFA‑encapsulated silicone core (used with 16FT designs)
• Flare‑Thru Chemfluor® fluoropolymer lining

Technical Data

• Temperature rating designed to exceed hose maximum temperature
• Fluid contacts only Chemfluor® PFA‑encapsulated gasket and fluoropolymer lining
• Smooth Chemfluor® fluoropolymer interior for reduced particle entrapment
• Flare‑Thru design promotes self‑draining of entire hose assembly
• No joint between hose and fitting to prevent material entrapment

Specifications
Inner diameter (in / mm):
0.75 (19.05)
1 (25.4)
1.25 (31.75)
1.5 (38.1)
2 (50.8)
3 (76.2)

Compliance & additional information

• Typical applications: hygienic/chemical transfer where full bore, cleanability and no dead‑legs are required
• Design: female cam & groove, Type D swivel for rapid connect/disconnect
• Regulation/standard: MIL‑C‑27487
