Adhesive hose Versilon® BCS
foodstuffbeveragefor steam

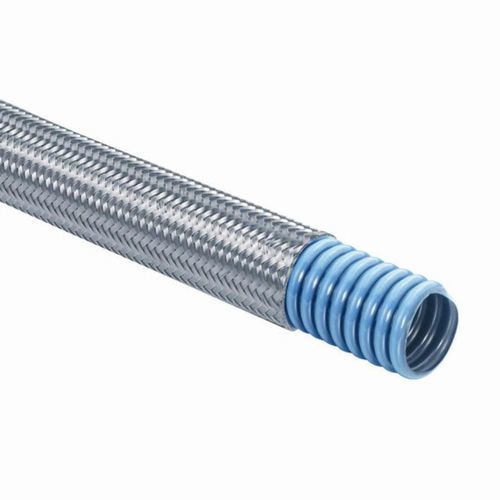

Adhesive hose - Versilon® BCS - Saint-Gobain Performance Plastics - Process System - foodstuff / beverage / for steam
Adhesive hose - Versilon® BCS - Saint-Gobain Performance Plastics - Process System - foodstuff / beverage / for steam
Add to favorites
Compare this product

Characteristics

Use
for chemical products, for solvents, for acids, foodstuff, beverage, for steam, for adhesives
Material
stainless steel, PTFE
Applications
food-grade, for vacuum
Other characteristics
chemical-resistant, vacuum, electrically-conductive, PTFE inner liner, braided stainless steel
Inner diameter

Max.: 50.8 mm
(2 in)

Min.: 9.53 mm
(0.375 in)

Outer diameter

Max.: 63.5 mm
(2.5 in)

Min.: 15.88 mm
(0.625 in)

Pressure

Max.: 151.7 bar
(2,200.222 psi)

Min.: 41.4 bar
(600.456 psi)

Description

Product summary
Versilon® BCS is a convoluted fluoropolymer hose featuring an electrostatic-dissipating conductive PTFE liner designed for safe transfer of media that generate static (caustic solvents, solvents, steam). The hose has a high-grade PTFE inner core reinforced with a 304 stainless steel braid. BCS is vacuum-rated, chemically resistant and provides flexibility plus effective vertical self-drain through its low-profile helical convolutions.

Features & Benefits
  • High flexibility and vacuum resistance
  • Helical, low-profile convolutions promote drainage
  • Neutral to taste
  • Does not absorb color or odor
  • Non-stick, non-contaminating surface
  • Compatible with SIP, CIP and autoclaving


Typical Applications
  • Chemical transfer
  • Steam transfer (e.g. tire press)
  • Solvent transfer
  • Acid lines
  • Adhesive transfer
  • CIP lines
  • Food and beverage transfer


Specifications (selected sizes)
Inner Diameter in (mm) | Outer Diameter in (mm) | Wall Thickness in (mm) | Minimum Bend Radius in (mm) | Maximum Working Pressure Psi (Bar) | Vacuum Rating inHg (mmHg)
0.375 (9.53) | 0.625 (15.88) | 0.125 (3.18) | 1.75 (44) | 2200 (151.7) | 29.9 (760)
0.5 (12.7) | 0.75 (19.05) | 0.125 (3.18) | 1.75 (44) | 1750 (120.7) | 29.9 (760)
0.625 (15.88) | 1 (25.4) | 0.188 (4.76) | 2 (51) | 1750 (120.7) | 29.9 (760)
0.75 (19.05) | 1.125 (28.58) | 0.188 (4.76) | 2.25 (57) | 1375 (94.8) | 29.9 (760)
1 (25.4) | 1.375 (34.93) | 0.188 (4.76) | 2.75 (70) | 1000 (68.9) | 29.9 (760)
1.25 (31.75) | 1.625 (41.28) | 0.188 (4.76) | 3.5 (89) | 750 (51.7) | 29.9 (760)
1.5 (38.1) | 2.125 (53.98) | 0.313 (7.94) | 3.75 (95) | 650 (44.8) | 29.9 (760)
2 (50.8) | 2.5 (63.5) | 0.25 (6.35) | 6.5 (165) | 600 (41.4) | 5 (127)

Technical characteristics
  • Inner liner: electrostatic-dissipating conductive PTFE fluoropolymer
  • Reinforcement: 304 stainless steel braid (high tensile strength)
  • Construction: helically convoluted, low-profile helix for flexibility and drainage
  • Chemical resistance: suitable for caustic solvents, acids and solvents
  • Vacuum rated (see size-specific vacuum ratings)
  • Cleaning compatibility: SIP, CIP, autoclavable
  • Hygienic properties: neutral to taste, does not absorb color or odor, non-stick/non-contaminating
  • Typical pressure ratings: size-dependent (see specifications)
