Stainless steel pipe elbow Versilon®

90°sanitary

Overview

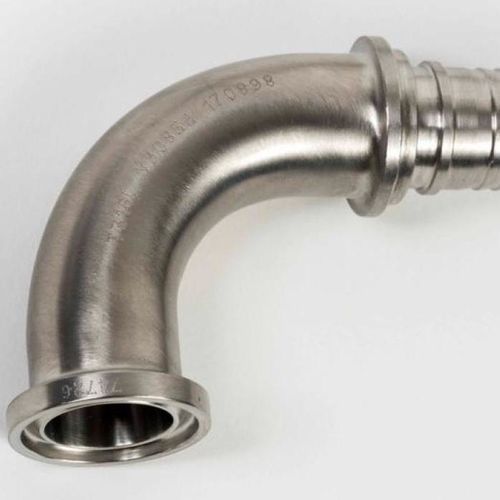

The Versilon® 90° Elbow Fitting, Style 10L and 11L, delivers sanitary 90° elbows in mini and sanitary clamp configurations with connections designed to match hose barb sizes.

Materials

• 316L stainless steel

Surface Finish

• Average 15 Ra or better

Technical Data

• Reduces strain on hoses by eliminating 90º hose configuration
• Eliminates entrapment, reduces connection points and potential bacteria growth areas
• Smaller installed dimensional envelope

Temperature/Pressure Ratings
Pressure and temperature ratings are dependent on clamp pressure ratings and gasket material temperature ratings.

Clamps

• Standard weight style: 150 PSIG @ 70ºF (21ºC); 125 PSIG @ 250ºF (121ºC)
• Heavyweight style: 500 PSIG @ 70ºF (21ºC); 125 PSIG @ 250ºF (121ºC)
• High pressure bolt style: 1500 PSIG @ 70ºF (21ºC); 125 PSIG @ 250ºF (121ºC)

Gaskets

• Above 250ºF (121ºC), PTFE, Viton® or silicone gaskets are recommended

Specifications (table)
Inner Diameter in (mm) | Outer Diameter in (mm) | Wall Thickness in (mm)
0.84 (21.34) | 0.98 (24.89) | 0.07 (1.78)
0.84 (21.34) | 0.98 (24.89) | 0.07 (1.78)
1.84 (46.74) | 1.98 (50.29) | 0.07 (1.78)
1.84 (46.74) | 1.98 (50.29) | 0.07 (1.78)
2.35 (59.69) | 2.49 (63.25) | 0.07 (1.78)
2.91 (73.91) | 3.05 (77.47) | 0.07 (1.78)
3.44 (87.38) | 3.58 (90.93) | 0.07 (1.78)
4.52 (114.81) | 4.68 (118.87) | 0.08 (2.03)

Product specifications

• Product: Versilon® 90° Elbow Fitting (sanitary elbow, mini and sanitary clamp styles)
• Material: 316L stainless steel
• Surface finish: Average 15 Ra or better
• Function: Reduces hose strain, minimizes entrapment and connection points
• Clamps ratings: Standard (150 PSIG @ 70ºF; 125 PSIG @ 250ºF), Heavyweight (500 PSIG @ 70ºF; 125 PSIG @ 250ºF), High pressure bolt (1500 PSIG @ 70ºF; 125 PSIG @ 250ºF)
• Gasket recommendation: PTFE, Viton® or silicone above 250ºF (121ºC)
• Available tube/fit sizes (ID/OD/wall): see specifications table values above
