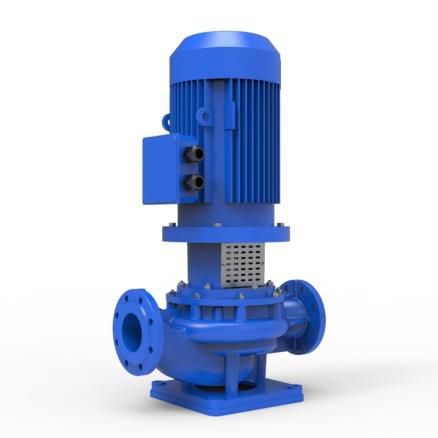

Centrifugal with volute pump TKF-I series

waterwith electric motorindustrial

Design Features • Equal to the diameters of the suction and pressure flanges TKF-I and on the same axis • At installation saves space • Quieter and less vibration. • Pump diamensions are acceptable TS EN 733 standard. • TKF-I series is off the wheel and wheel balancing holes in the wings to minimize ta axial loads, dynamic loads are balanced within. • Switch to the motor shaft to the pump shaft is provided with the connection. If there are overloads of this type of connection coupling link is provided instead • Suction and discharge flanges are suitable standard ISO 7005-2/PN 16. • Cavitation tends to be more limited. • High Efficiency • Shaft sealing by mechanical seal is provided • Long service life • Circulation pump applications, the preferred model Technicial Specifications • Capacity : up to 500 m³/h • Head : 100 m • Speed : up to 2900 rpm - (60Hz)* • Operating Temperature : -10 °C’ to +110 °C • Casing Pressure (Pmaks) : 10 bar (16 bar) * • Power : Up to 55 Kw Usage places • Heating systems • District heating systems • Central heating systems • Domestic hot water systems • Fire fighting systems
