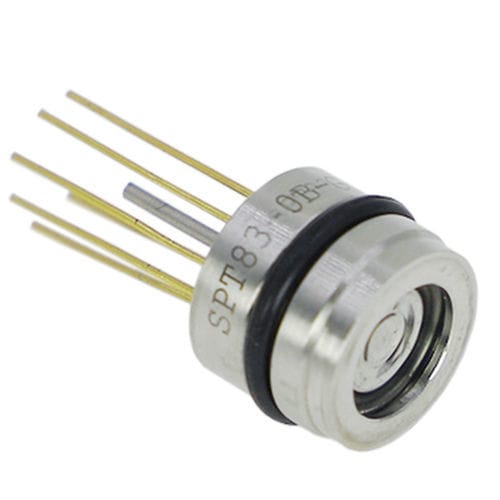

Compact pressure sensor SPT83

absolutesiliconvoltage output

Features • Gauge, absolute and sealed gauge • Constant current power supply • Isolated construction, enable to test measure various media • 12.6mm compact size OEM pressure sensor • Stainless steel 316L • Wider temperature compensation range -10°C~ +80 'C Application • Industrial process control • Level measurement • Gas, liquid pressure measurement • Pressure inspection meter • Pressure calibrator • Liquid pressure system and switch • Cooling equipment and air conditioner • Aviation and navigation inspection Introduction SPT83 compact sized pressure sensor is OEM pressure sensor with stainless steel isolated diaphragm, the whole product has integrated construction, high endurance, high stability and good reliability , it can be used specially for middle and high pressure measurement. The sensor using high accurate and stable pressure die, are produced on the advanced production line. Sensors are tested automatically, and compensated zero andtemperature performance. With identical mounting dimension, the sensors are widely used for chemi-industry, process control, liquid pressure system and switch, etc. Electric Performance • Power supply: ≤2.0 mADC • Electric connection: Kovar pin or 100mm silicon rubber flexible wires • Common mode voltage output: 50% of input (typ.) • Input impedance: 2.5kΩ—5kΩ
